Hi Martin

My Uart program works again on both PCs.
There are no more problems with pressing the reset button.

But I can't compile the tiny program.

Do you know how I can add it to the Flowcode menu config ?

Are there any C code commands like for CPU speed setup? Then I wouldn't have to change the menu.

missing settings:

Hi Stefan,

Sorry - I'm away from home at the moment - and no access to anything to test...
What are you getting in the menuconfig ? I think you need a fullclean / rebuild (or change another menu setting, rebuild) after adding the tinyusb library before it shows up?

Martin

Hi Martin, Hi Ben

I've already made some progress.
Instead of the ESP3S3 in general, I'll try just the ESP3S3 Mini first. The pin layout is clearer on that chip.

I took a closer look at the ESP32S3-Mini, and the pins for RX/TX are :

UART0 mapped to GPIO 43 (TX) and GPIO 44 (RX).

But I'm still having trouble with the configuration menu. I can't add the USB Tiny option in config-menue from Flowcode.

https://flowcode.co.uk/forums/viewtopi ... 71#p21971

Hi Martin, Hi Ben

For a test; How can I insert these lines into the file so that it isn't overwritten?

CONFIG_TINYUSB_USE_INTERNAL_PHY = y
CONFIG_TINYUSB_INTERNAL_PHY_D+ = GPIO20
CONFIG_TINYUSB_INTERNAL_PHY_D- = GPIO19

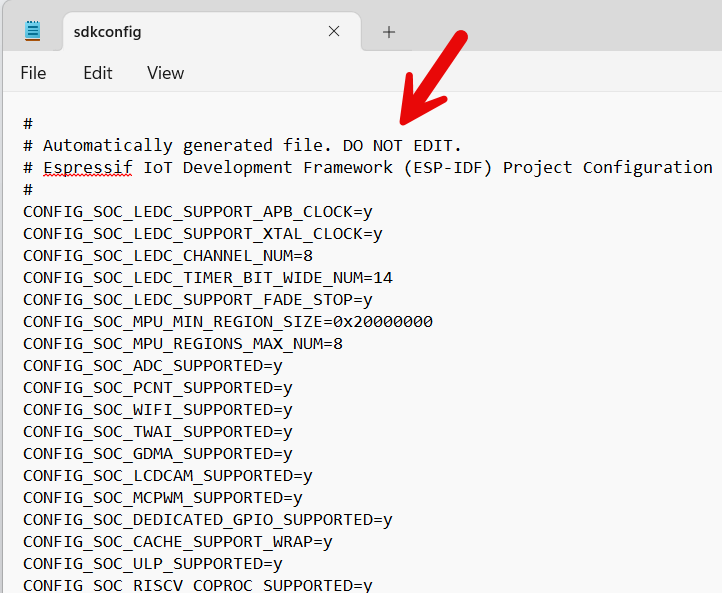

sdkconfig file for esp32s3

Hi Martin, Hi Ben

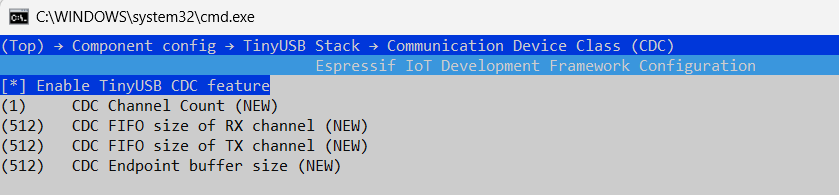

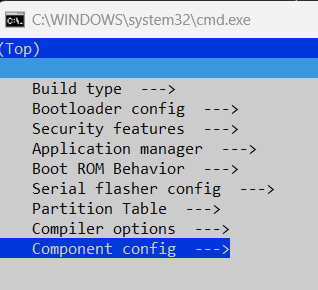

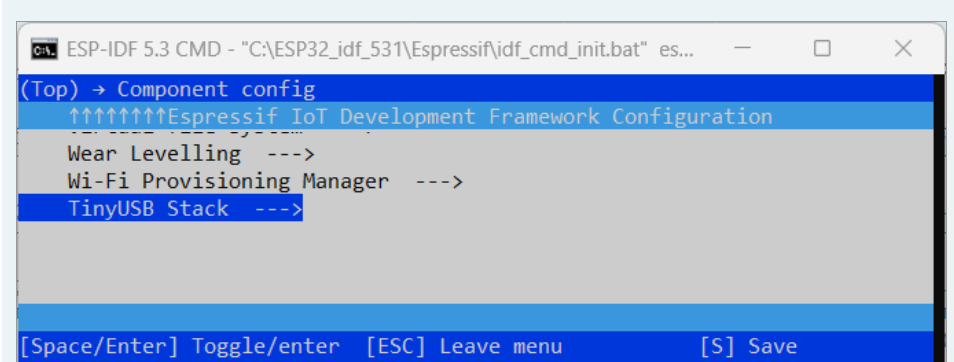

When I add the green line to the S3 menuconfig batch file, “TinyUSB” appears in the menu

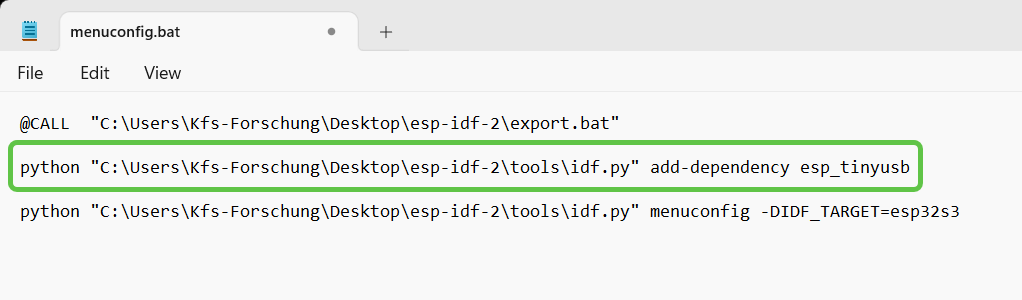

@CALL "C:\Users\Kfs-Forschung\Desktop\esp-idf-2\export.bat"

python "C:\Users\Kfs-Forschung\Desktop\esp-idf-2\tools\idf.py" add-dependency esp_tinyusb

python "C:\Users\Kfs-Forschung\Desktop\esp-idf-2\tools\idf.py" menuconfig -DIDF_TARGET=esp32s3

Progress

Do you get any output from the usb?

Martin

Hi Martin

First, the good news. The code compiles and all the others functions still works fine.

But:
No, no data yet.
I still have one more thing to do.
In Flowcode esp32s3, there are only two COM ports. However, the S3 has three UARTs, and UART0 must be connected to this pin.
I'm not sure whether UART1 or UART0 is used in the Flowcode.
With channel1 there is no data output ....

UART0 is mapped to GPIO 43 (TX) and GPIO 44 (RX).

and here is a problem

Component config → ESP System Settings → Channel for console output

(X) Default: UART0
( ) USB CDC
( ) USB Serial/JTAG Controller
( ) Custom UART
( ) None

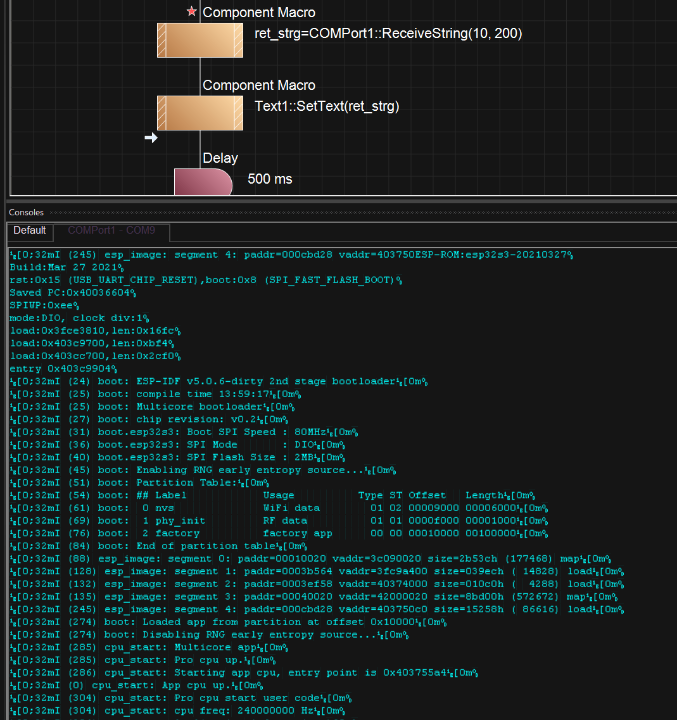

if I choose (X) USB Serial/JTAG Controller I get a lot in the console

When I select that option, a different COM port number appears after flashing.
I can connect, but I don't receive any data.
If I want to reflash, I now have to select “Boot” and “Reset.” So the normal COM port number reappears.

( ) Default: UART0
(X) USB CDC
( ) USB Serial/JTAG Controller
( ) Custom UART
( ) None
