State Diagram mode
Posted: Tue Dec 08, 2020 3:22 pm
by alanwms
My "state diagram" is greyed out. Does that mean I don't have it or does that mean I am not using it correctly?
Re: State Diagram mode
Posted: Tue Dec 08, 2020 4:14 pm
by p.erasmus
Hi
Read the instruction on use in the wiki from here
https://www.flowcode.co.uk/wiki/index.p ... e_diagrams
Hope this helps
Re: State Diagram mode
Posted: Tue Dec 08, 2020 4:18 pm
by Steve-Matrix

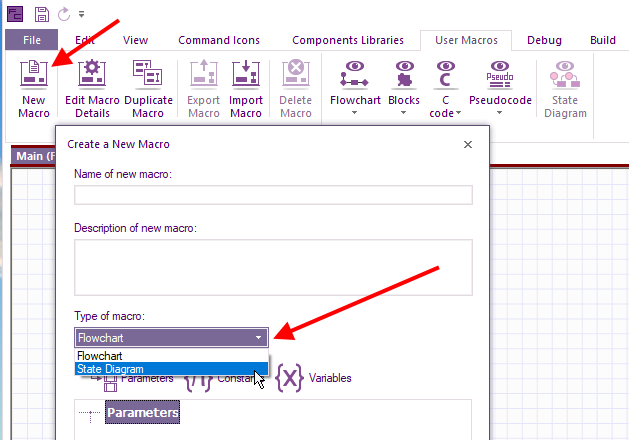

The "State Diagram" button on the toolbar allows you to access state diagrams that have already been created. To create a new state diagram, select "New Macro" from the User Macro menu and select the appropriate type of macro:
- create state diagram.png (39.05 KiB) Viewed 10976 times
Re: State Diagram mode
Posted: Wed Dec 09, 2020 12:05 am
by alanwms
Steve -
Thanks. I did read the WIKI but failed to get where I was going.
Off I go into State land.
Re: State Diagram mode
Posted: Sat Dec 19, 2020 11:18 pm
by alanwms
Do we have any simple examples showing the use of the state macros?
Re: State Diagram mode
Posted: Sun Dec 20, 2020 11:16 am
by medelec35
Hi Alan,
p.erasmus posted a link to a Wki page,
there are 3 examples at the bottom of page.
