Hi,
I wonder if there is an issue or I am doing something wrong. I have my project working fine using A.12 (channel 2) which looking at the pinouts is not even a serial port?
The issue with this is that I have to disconnect the serial port every time I try to download or it fails, I did see somewhere this pin must be low on boot which is a bit of a limitation.
Anyway I tried to move to RX2 pin A.16 (channel 2) and I can now download but get no serial input. I tried software, channel 1 and 3 but nothing.
I looked at RX0 but the document I have says that is used for flashing and debugging so off limits.

Any suggestions as to what I am doing wrong with RX2, I cannot wait to migrate the project over to a Raspberry Pi to move away from this buggy thing.

Regards,
Bob

I have used a second UART successfully - for example viewtopic.php?t=3542&hilit=LiDAR - however i did this in C...

Can you upload a code snippet and a bit more detail what's going wrong...

Martin

Hi Martin,
I tried using that pin and got no serial input.
I have attached 2 files, identical apart from the serial port RX pin.
3A works and I can see data changing on the web app but if I use 3B I get nothing. I have also tried using GPIO19 and software but that did not work either.
I am not a fan of ESP32 as there seem to be so many different variations.
I think this is the device I have https://kunkune.co.uk/shop/esp32-esp826 ... bluetooth/ Regards,
Bob

Hi Bob,

I did a quick demo program - and the UARTs seem to work okay.

I use two UARTs one (connected to UART1 - and thus to USB) and one to UART2 (I connected an FTDI convertor). Note that I also connected the Tx pin - and output a message here - as a sanity check.

It looks for data at UART2 (I used A16 as input here - but also tested other pins) - and outputs it to UART1 (USB) when enter is pressed (it looks for '\r' 0x0D) I also tested UART3 and that also works.

I think you will need to use an Rx interrupt (you use ReceiveString) - otherwise 'catching' the data is very much a matter of luck. Timing is very 'tricky' to say the least.

Note that (rather confusingly) the interrupt you need is 1 less than the UART number (so UART1 -> Use RxInt0 UART2 -> RxInt1 etc) - this is the same for all MCUs - but it is an odd naming convention (software is UART0).

To test open one PuTTY terminal on the esp32 COM port (in my case COM6) at 115200baud. Open a second COM port to your FTDI converter (COM13 for me) at 9600 baud. Note that you can alter the baud rates to suit... Type into the FTDI com port and it will 'appear' in the other when you hit enter.

Martin

Hi Martin,
Thanks for that, it will help greatly. I do have another device (DF Robot Firebeetle 1.0), I thought a well established brand would be better but it is rubbish, even with the manual I am unsure what pins are what, I should have payed more attention when buying. The manual shows the pins for the ESP32 module but not for the actual board it is mounted on. I will not be buying anything else of theirs.

The data in is around 20 bytes every 4 seconds and seems OK but an interrupt will be better, I will have to read up on how that works here.

I will have a play later and let you know how I get on.

Regards,
Bob

The esp32 does offer a remarkable amount of 'bang' for the buck....

The programming paradigm ( ) - is slightly different to most MCUs - for the most part because of the (co-operative) multi-tasking system used. It's worth playing along though - because the performance for such a low-price device is very good indeed....

Reading 20bytes - just 'look for' pos == 20 though you might need to add a 'timeout' too?

I've not used the DFRobot board - but there is a wide range of kit available. I got some esp32-wroom-32 boards a while back - and they've proved very reliable (despite some getting rather warm - as a result of my suspect wiring skills). It's a pity they don't fit on a breadboard though

Let us know how it goes - and of course any questions...

Martin
#

Well, I cannot put my actual thoughts here for fear of being banned

Nothing worked, I then recalled I used the board with an RS485 module that used RS232 between ESP32 and the RS485 transciever. I dug out the old program and that used GPIO16 but the FC program had it down as GPIO22??? I recall there was some confusion way back then, I tried that and nothing.
I then decided to give the DF Robot module a try, used pin 16 and that worked straight away.
I think that is why I do not like ESP, apart from the dreadful gamble when setting up the toolchain you have all this to deal with. I have no idea where I got it from (probably Amazon or eBay) and even less chance of finding the actual datasheet so I will probably find my biggest hammer tomorrow and relegate the module to the WEE bin with no chance of return.

At least I have your code to look at for the interrupt which will make the code more robust.

regards,
Bob

Hi Bob

I feel your frustration both with devices and toolchain. I do have a few varieties kicking around and did for them manage to find pinouts that worked. Although not trustworthy by any means. On one board I could find no mention of any restrictions on a certain pin usage, but of course discovered later it was unusable when testing. If you share details of device I will see if I have a reliable-ish datasheet.

There seems reluctance to include Pico W / Pico 2W as a target. It has been requested many times and would provide an alternative to ESP in many instances. Until then I'll probably continue with PICs using the 8266 as my WiFi interface via UART and AT.

Regards

Hi,

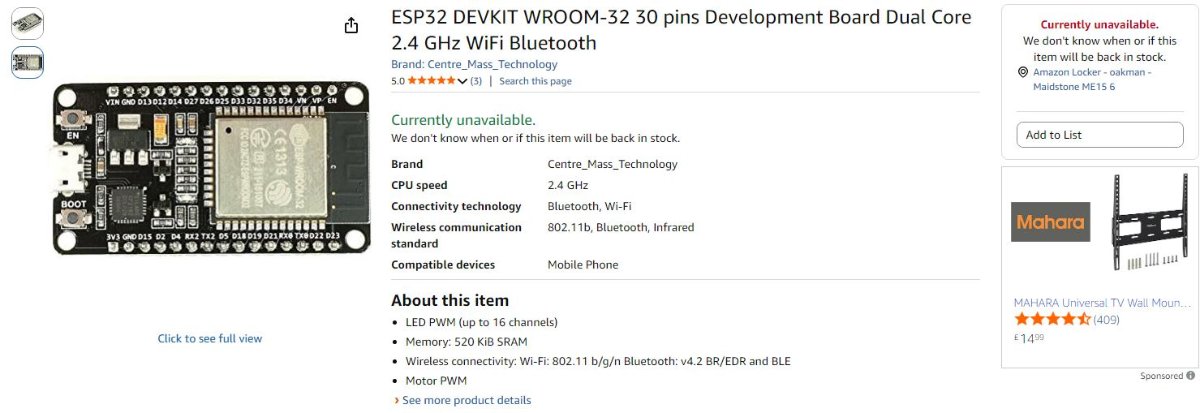

I have gone through my emails and this is the device I have got. I am reluctant to bin it even after all the grief it has caused me. Pretty much all I use these for is the WiFi and serial ports and I have had a brainwave.
I do not know if it will work but I am going to program TX1 and TX2 sending a repeated string such as This is TX0/1/2 and test each pin with a module set for the known BAUD rate to hopefully find the pins. The RX are normally adjacent.

I also have one from Kunkune that looks the same (when i can find it) so will see if that is normal

Bob
