I made this algorithm, it works, now can count pulses on any input:)

Thank you, I tried, but maybe I made a mistake somewhere. Where I gone wrong? I have attached project.

Hello!
I want to ask, possible to make pulse counter in FlowCode 3 using normal pin for count, not using interrupt?

Hi! Thank you for information. Do You know the suitable examples of switсh icon using or 7 segment LED control by timer?

I did setting of the first indicator digit, but when I set the value, the remaining 2 indicator digits ceases to shine. How to make correctly digits setting?

I have found my mistake, I connected the segments of the indicator to port B and had a conflict with PIN B0:)

Hi! I made a counter on the 7-segment LED display, but it is working not properly. Where I made a mistake?

Thank you! Now the program works. Is possible in generally to make a pulse counter without interruption, just on a survey of a PIN?

Unfortunately the program does not work in Proteus, the LCD is clean and does not react to button A4. I have attached all necessary files. Other examples in Proteus run. For comparison, I put in the archive file Better_Clock_Example1_16F887.hex which works in the Proteus.

Hi! In the simulator Flowcode program count internal impulses, you have not noticed this? I was not able to compile a HEX file: It seemed an error message. (below) I usually check the program in the program Proteus VSM ( http://www.labcenter.co.uk ) but that requires HEX file File name: F:\Microcint...

Hi! I'm trying to make a pulse counter using the timer external input (pin T0CKI). But somehow the counter does not respond to button A4 (pin T0CK1) and count the internal frequency. Where I made a mistake?

Thank you very much, it is now clear.

I want to ask about the internal clock. If 19660800 divided by 256 is equal to 76800. How is the frequency of interruption of 75 Hz?

Hi! It is possible to do in Flowcode chip logic macros , such as D triggers or binary-decimal counters?

Thank you, I will see this.

Why use clock frequency 19660800 Hz? Is there are quartz crystals with such frequency?

Thank you! Good example.

Thank you, I moved the connection point above the switches reading, but still does not work. When pressed, the program stops, and when I release the button, the program is working again. But the hours is not set as I had planned.

I did so (attached), but when I click on the button B0 to set the hours, the program stops. Where I made a mistake?

Hi! I have a question for example TUT22 (clock). It would be interesting to set up 2 buttons to set the time, one button to set hours, the other - to set minutes. Which way is better to do this?

Hi! I want to ask how much frequency of the watch dog timer? How can I change (or to set) the frequency of the watchdog timer? And I want to ask what is meant by power-up timer?

Thank you, probably setting accidentally strayed, I restored them by default, is now working.

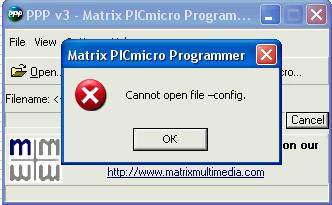

Thank you, I have successfully installed Flowcode4, but I have a problem, I can not open the menu Chip / Configure. What am I wrong?

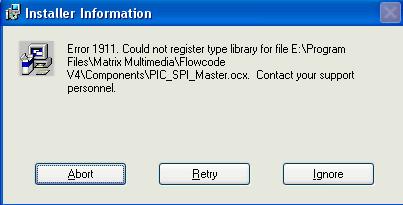

Thank you, I will try this. There is a problem at FlowCode 4 installation . What does this mean?

Thank you, how to do Autoclear watchdog timer in Flowcode 3? In Flowcode 4 I saw such an opportunity, but in FlowCode 3 I does not see how to make Autoclear watchdog timer.
