RTC for Miac(Part One)

[Enamul]

Hi,
I made the program in Flowcode V4.5 It should work in Flowcode V5.4 but I am getting the same error..seems they are not compatible..Don't worry allow me some minutes..I am posting program using FCv5

[acestu]

Thanks Enamul

Acestu

[Enamul]

Hi Stuart,
I have linked the FCV5 bug correction earlier and I forgot that now..Here is the bug correction link..
http://www.matrixmultimedia.com/mmforum ... 512#p38512

You will see FC5_PIC_CAN.c file to download in the link...Replace the old one in "Flowcode/v5/Components" directory..

Edit: so last posted program will compile after fixing the bug.

[acestu]

Hi Enamul,

Not having much luck, problems with the dev board now, the green power light will not come on now and the voltage regulator on the board is red hot ?

thanks
Acestu

[Enamul]

ohh..
Did you manage to compile the code?

[acestu]

Ok that was weird, its working now, yes I have just programmed the chip, getting late now though so I will carry on tomorow Enamul, and
as always thank you for your time and help

Acestu

[Enamul]

Glad it worked finally..No problem we will start tomorrow..Good Night

[acestu]

Hi Enamul,

I am building the send receive master first, the switch on port b4 would this connect to +5v or ground

thanks
Acestu


[Enamul]

Hi Stuart,
You have to connect RB4 to Vcc via 4.7K resistor..a switch from RB4 to GND. Pressing sw, RB4 = 0 and normally high.

[acestu]

Hi Enamul,

the switch, is it a momentary action or latching ?

thanks stuart

[Enamul]

You can use momentary switch as whenever you press switch data will send to slave and master will be in another loop for data receiving..

[acestu]

Hi Enamul,

I have just finished the second node, I am going to join them both on the canbus now, do the end of line resistors have to be dead on 120 ohms because I dont have any at this value ?

thanks
Acestu

[JohnCrow]

Hi Stuart

I dont think the value its too critical.

I'm using (measured with the DVM) 118.3 ohms on the termination for my miac expansion modules (the miac end is built in)
That is also the value I get if I measure across the CAN terminations on the E-block can board.

[acestu]

Thanks John,

The nearest I have is 100 ohms, but I have read articles that say people have used 60 ohm resisters, so I don't know, what is the worst that will happen, it won't work ?

thanks
Acestu

[Enamul]

Hi Stuart,
According to datasheet of MCP2551, you should be fine if you use even 60 ohm. So I think you can simply connect 100 ohm for both terminals.

[acestu]

Hi Enemul, I have connected up the bus with the 100k resisters but nothing seems to work unfortunately, any ideas ?

thanks
Acestu

[JohnCrow]

Hi

Hi Enemul, I have connected up the bus with the 100k resisters but nothing seems to work unfortunately, any ideas ?

100 k or is that a typo? hopefully you mean 100 ohm

[acestu]

Sorry you are right John, its a typo

thanks
Acestu

[Enamul]

Hi Stuart,
What is shown in slave and master display? Because the program is tested one and should work straight way.

[acestu]

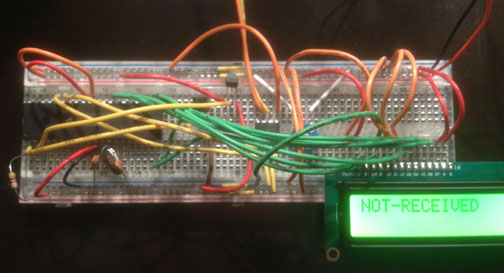

Hi Enamul, the Master says "NO-TRANSMISSION" and the slave says "NOT-RECEIVED"

When the button on the Master is pressed the Master says "CAN-TRANSMISSION 84" and then changes to "NOT-RECEIVED"

The slave does not change

thanks
Acestu

P.S. I am using the temp sensor for the analogue input

[Enamul]

When you press the button, you should see "CAN Transmission" in first line and 84 in second line. Are you getting that? You mean in slave you always see "Not-Received"?

[acestu]

Hi Enamul,

Yes that is what the master does, but the slave never changes it always says "NOT-RECEIVED"...

thanks
Acestu

[Enamul]

Hi,
I have modified the code for you that John used couple of days earlier. It is tested in FCV5..If it doesn't work in your case; I have to think in circuit connection and programmer issue.

[acestu]

OK, I have checked all my connections and found both mcp chips pins 5 to 8 back to front, I changed them and now it is sending info and returning info


thanks
Acestu

[Enamul]

SO you mean now you can get data sending from master to slave and slave returning to master using the previous programs? If so, great well done! I am sending now one program for RTC with set options..
