E-block Helper component
A purely cosmetic component to help simplify E-block connections without having to keep referring to the datasheets. Specify which E-block your using and the component will give you options for the patch settings and display the connections required.
Component Pack
FREE
Detailed description
No detailed description exists yet for this component
Examples

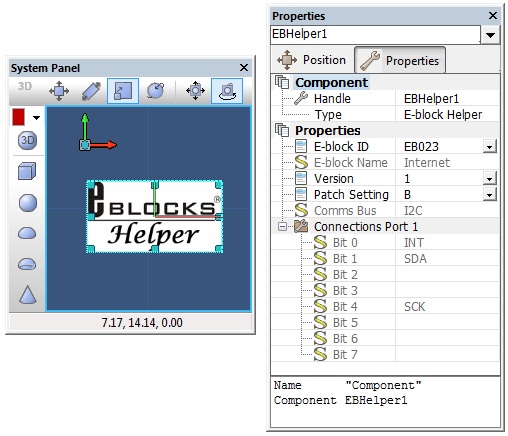

Example of E-blocks helper component being used to determine connections.
Downloadable macro reference
Property reference
|
Properties |
|
E-block ID |
| E-block product ID | |
|
E-block Name |
| Cosmetic name of the E-block to confirm you have the correct board. | |
|
Connections Port 1 |
|
|
Bit 0 |
| Port 1 Bit 0 | |
|
|
Bit 1 |
| Port 1 Bit 1 | |
|
|
Bit 2 |
| Port 1 Bit 2 | |
|
|
Bit 3 |
| Port 1 Bit 3 | |
|
|
Bit 4 |
| Port 1 Bit 4 | |
|
|
Bit 5 |
| Port 1 Bit 5 | |
|
|
Bit 6 |
| Port 1 Bit 6 | |
|
|
Bit 7 |
| Port 1 Bit 7 | |
