Component: Target Chip (Advanced Shapes)
From Flowcode Help
(Redirected from Component: ID 3d632cd0 b8cb 4ca0 8f7a 59f88ac02fa3)
Jump to navigationJump to search| Author | Matrix Ltd |
| Version | 1.0 |
| Category | Advanced Shapes |
Contents
Target Chip component
A cosmetic only representation of the target microcontoller device showing the default package type complete with pins.
Component Pack
FREE
Detailed description
No detailed description exists yet for this component
Examples

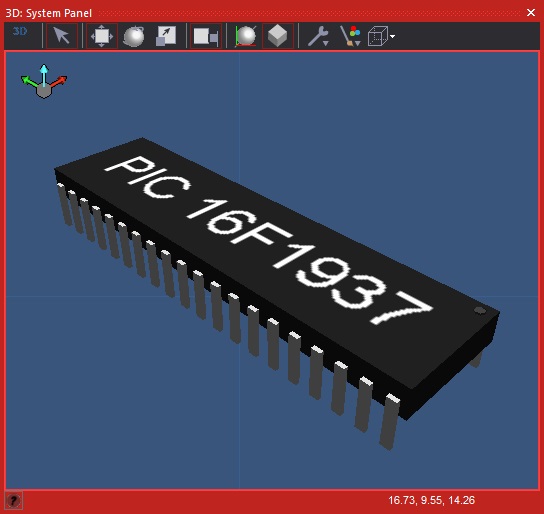

A really simple component that creates a chip on the Flowcode panel representing your target microcontroller.
Useful if your designing a component with a PCB and want the panel graphics to replicate the real world electronics.
Downloadable macro reference
Property reference
|
Properties |
|
Device Name |
| Name of the current selected target micrcontroller in your project. | |
|
|
Device Family |
| Name of the current selected target micrcontroller family in your project. | |
|
Number Sides |
| Minimum number of sides on the current selected target micrcontroller in your project. 2 sides usually indicates rectangular DIL / SOIC / SSOP packages. 4 sides usually indicates square TQFP / QFN packages. | |
|
|
Number Pins |
| Number of pins on the current selected target micrcontroller family in your project. | |
