Component: Injector (File) (Test Injectors)

Author	Matrix Ltd
Version	1.0
Category	Test Injectors

Injector (File) component

Comms data injector to allow data to be streamed to and from a file during simulation. The component will read data from the incoming file and write data to the outgoing file.

Component Pack

FREE

Detailed description

No detailed description exists yet for this component

Examples

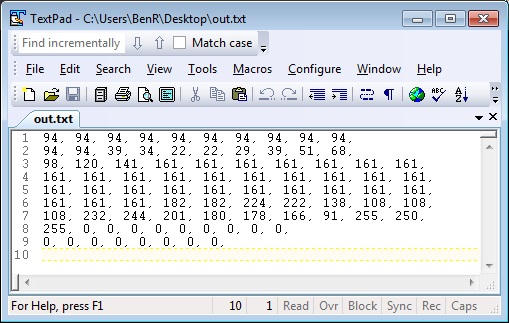

Example to log the bytes sent via the UART RS232 component to a file as comma separated decimal numbers. LogToFile Contents of the file in the Flowcode project directory after running the simulation.

Downloadable macro reference

	SPITransferTrans
Transfer an array of bytes using the SPI bus
- BYTE	Channel
Channel Index: Range 0 - SPI Bus Count - 1
- UINT	Count
Number of bytes to send and receive
- BYTE	DataOut
Outgoing data
- BYTE	DataIn
Incoming data
- VOID	Return

	UARTBaud
- BYTE	Channel
- BYTE	Rate
- VOID	Return

	UARTCheckRX
- BYTE	Channel
- BYTE	Return

	UARTInitialise
- BYTE	Channel
- VOID	Return

	SPITransfer
Transfer a byte using the SPI bus
- BYTE	Channel
Channel Index: Range 0 - SPI Bus Count - 1
- BYTE	DataOut
- BYTE	Return

	GetConsoleHandle
Gets the handle to the console allowing data displaying on the panel etc.
- HANDLE	Return

	SPIPrescaler
Modify the speed of the SPI bus
- BYTE	Channel
Channel Index: Range 0 - SPI Bus Count - 1
- BYTE	Prescaler
Range: 0-2
- VOID	Return

	UARTReceive
- BYTE	Channel
- BYTE	Return

	SPIInitialise
Initialsie the SPI module ready for communications
- BYTE	Channel
Channel Index: Range 0 - SPI Bus Count - 1
- VOID	Return

	UARTSend
- BYTE	Channel
- BYTE	Data
- VOID	Return

Property reference

	Properties
	Show Console
	Incoming File Settings (Rx)
	Incoming File
File to stream incoming data from. File -> Communications component.
	Parse Mode
Specifies the way we read in the data from the file. Detailed Byte : "z - 122 - 0x7a" Raw : "z" CSV Decimal : "122, " CSV Hex : "0x7a, "
	Display Mode
Specifies the way we show the data on the console. Detailed Byte : "z - 122 - 0x7a" Raw : "z" CSV Decimal : "122, " CSV Hex : "0x7a, "
	Values Per Line
Number of values to display on a single line of the data console. 0 = Infinite number of characters
	Skip Timestamp
A file populated with data from an injector may have a timestamp built in which we may not want to receive. Yes: Skip first 22 characters of each line of data so we don't receive any of the timestamp info. No: Read data normally.
	Outgoing File Settings (Tx)
	Outgoing File
File to store outgoing data. Communications component -> File
	Clear On Init
No - Append to the end of the file. Yes - Empty file on initialise and start from the beginning of the file.
	Data Mode
Specifies how the data is represented in the outgoing file. Detailed Byte : "z - 122 - 0x7a" Raw : "z" CSV Decimal : "122, " CSV Hex : "0x7a, "
	Values Per Line
Number of values to display on a single line, applies to the file and data console. 0 = Infinite number of characters
	Append Timestamp
Appends a timestamp to the beginning of every line relating to the time the first byte in the line was received. Based on the PC system time. Timestamp in the format "YY/MM/DD - HH:MM:SS - "
