Component: LED MultiColour Bi (5mm, PCB) (LED)

Author	Matrix Ltd
Version	1.1
Category	LED

LED MultiColour Bi (5mm, PCB) component

An industry standard 5mm diameter bi-colour LED. Any color may be chosen, and the leads trimmed to length.

Component Pack

BASICIO

Detailed description

No detailed description exists yet for this component

Examples

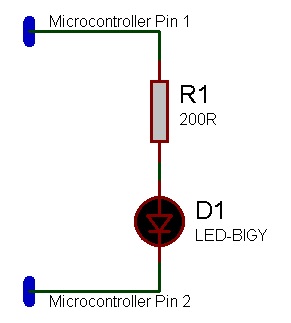

A Bi Colour LED should be connected between two microcontroller I/O pins as shown below.

The series resistor can be on either side of the LED and acts to protect the LED from damage due to excess current. The value of resistor used can be changed based on the brightness of the LED and power consumption.

This LED Calculator tool is a good resource for calculating the correct LED series protection resistor.

LED Resistor Calculator Tool

Downloadable macro reference

	LEDOff
Switches off the LED
- VOID	Return

	LEDSetState
Controls the state of the LED. 0=Off 1=LED Colour 1 2=LED Colour 2
- BYTE	State
0=Off, 1=Pin1 High & Pin2 Low, 2=Pin1 Low & Pin2 High
- VOID	Return

	LEDOneOn
Switches on LED one
- VOID	Return

	LEDTwoOn
Switches on LED two
- VOID	Return

Property reference

	Properties
	Connections
	Pin
LED Pin 1
	Pin2
LED Pin 2
	Simulation
	Color
The color of the LED when pin1 is turned on and pin2 is turned off.
	Color2
The color of the LED when pin1 is turned off and pin2 is turned on.
	Trim Leads
Trim the length of the two leads. Length cannot be less than 3.0, or greater than the length as supplied.
	Label
	Color
Color of the labels text.
	Scale
Sets the basic size (text height) of the labels.
	Follow Zoom
Whether labels get bigger and smaller when the panel is zoomed in and out.
