SSD1963 hardware not working properly

[kabouras_33]

Hello benj!!!
Did you have any time to check?I am still in the no man's land

[kabouras_33]

So the pic32MX arrived today and I was about to set up everything in order to TEST something that maybe is working with this pic (ssd1963) and I noticed that I have to pay 60 pounds for a licence that I do not know if it even going to work... for what I want and it is supposed to work from flow code.....
I would advise that when you sell something of a decent amount of money that it is supposed to be tested and working and someones pay especially for professional licenses at least give some support in reasonable times.....and the trust to buy more...
Anyway still waiting for a reply if it is working with pic33 or pic18....lets see

p.s. Please don't misunderstand my frustration I am a professional and I pay for a tool that is supposed to do A, B, C and it doesn't but even if it is my error at least give decent support.10 days since the problem appeared and only one response from Benj after 1 week...

[MACIANX]

Hi engineer
ssd1963 does not work full
It has half an image screen! 600 - 480 pixel

[kabouras_33]

Any updates?

[mnf]

As I offered with another display - if you supply me with the hardware - I'll try and get something working.

As it's a commercial project then payment would be good.

I've 'done' a component for ST7789 so have some experience with displays.

PM if you are interested..

Martin

[kabouras_33]

Thank you very much for your assistance...but I have already paid for software that it is supposed to do that plus I am on a very strict deadline here...does it make any sense for me to pay again or even invest an expensive screen for something that it should be working in the first place???
Anyway, I will wait a little more to see if there is any response otherwise I 'll have to change the whole concept!
thanks anyways much appreciated

[mnf]

No worries.

If you change your mind then PM - but hopefully Matrix can get things up and running for you.
I'd experiment - but without something to test on it's not an easy ask.

There are a lot of good screens that are easy to use and work with - so if you are needing to get something working quickly then the Nextion displays, for example, can get impressive results in a short time...

Martin

[Benj]

I haven't manage to get my hands on one of these displays so I'll get one purchased so we can investigate the problem for you.

[kabouras_33]

Hi Benj do you want me to sent you one?

[kabouras_33]

If yes sent me address in pm and I will sent you all the setup parts including pics

[Benj]

Ooh if you don't mind that would be very helpful.

[MACIANX]

Heloo
If possible, insert and modify ss1963. I did all kinds of tests but it didn't work
please help......

[Benj]

Hello,

Running on an ECIO40P16 I have the following.

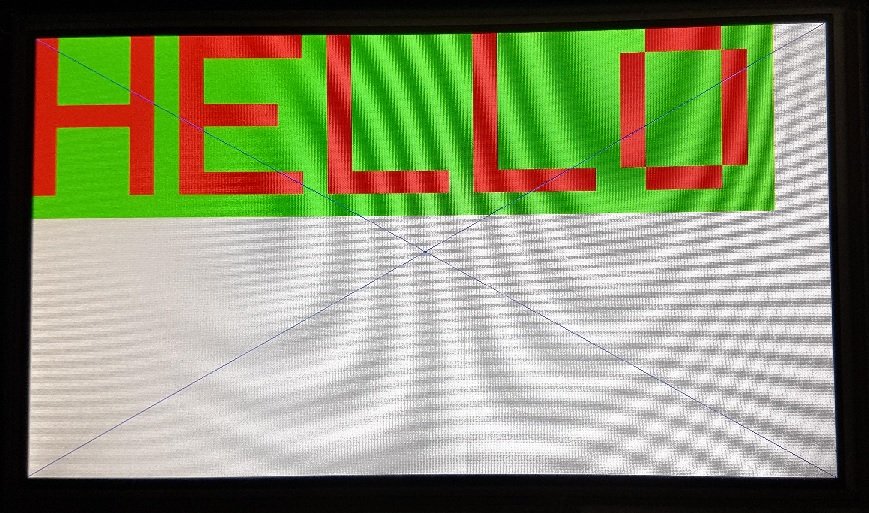

Aiming for this.

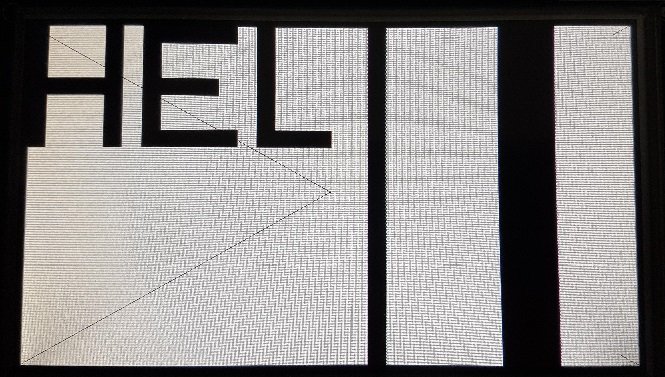

I get this.


so we are close. There seems to be an area after the initial half that's corrupted but then it's good again by the end. I'll investigate. That video you sent me looks like it's on the same track so hopefully will help a lot. Rewatching it now.

These are my component properties atm.


[Benj]

Yes the video showed me the way and I've now got the display fully working.


I've got the following connections to the display.

D0-D7
Reset
CS
RD
WR
RS
3V3
5V
GND

I'm just rolling the fix to v8 and then I'll push the fixes onto the update system for v8 and v9.

Many thanks for sending me the hardware. Do you need it returning or should I keep it handy in case we encounter any more problems?

I might have a quick go with the touchscreen while I've got it hooked up and see if I can get this working.

[Benj]

Here's a v9 program with a test pattern and then a touchscreen test.

SSD1963-Test.fcfx

(16.21 KiB) Downloaded 361 times

Seems to be working ok but not brilliant. The touch is working but the coordinates aren't as perfect as I would like.

https://www.youtube.com/watch?v=IbGcEOVemLg

[kabouras_33]

Of course, you shall keep it !!
you are the best!! thanks a lot, I will also start testing again soon because currently, I changed my project with an ili9346!!temporary!!!
(for which I have a font style problem another thread )
So since we are up and running with the ssd1963 I will make a bulk order from China thanks a lot!!!

[MACIANX]

HELOO
Thanks a lot . Only if you can put SSD1963 in the library and for testing

[Benj]

Hello,

Been thinking about this a bit and I might make an addition to the touch component to allow you to calibrate it and filter the input. That should hopefully help a lot with the accuracy of the touch.

[kabouras_33]

noice

[MACIANX]

HELOO
Thanks a lot . Only if you can put SSD1963 in the library and for testing
