Remote Control LED Matrix project with Arduino

[kynixsemic]

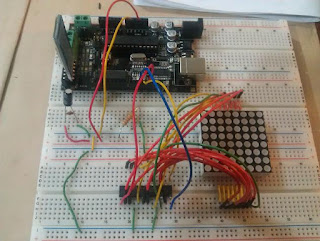

Recently done a LED 8x8 experiment, the main is to use a cell phone Bluetooth to control an 8x8 LED, this experiment is not difficult, mainly in the hardware wiring part to figure out the corresponding pin.

Use of materials:
1. LED 8x8 matrix
2. Bluetooth
3. Motoduino or Arduino
4. MAX7219 (datasheet:http://www.kynix.com/uploadfiles/pdf228 ... 9CNG2b.pdf)
5. 27k resistor
6. 10uF capacitor
7. 0.1uF capacitor
8. Some wires



Refer to the reference schematic here: Arduino playground

download android apk: http://www.motoduino.com/tw/downloadfiles



Video See: [youtube=] http://www.youtube.com/user/sinocgtchen [/youtube]

Have any questions or are interested in friends, welcome letter to discuss, thank you !!
