I include a hex file that runs the number 6513 on the display .
Obviously you can run your FC generated hex file and it will show your code
hope it helps some one
Model for the EB008 7 Segment E Block
Moderator: Benj
-
QMESAR
- Valued Contributor
- Posts: 1287
- Joined: Sun Oct 05, 2014 3:20 pm
- Location: Russia
- Has thanked: 384 times
- Been thanked: 614 times
Model for the EB008 7 Segment E Block

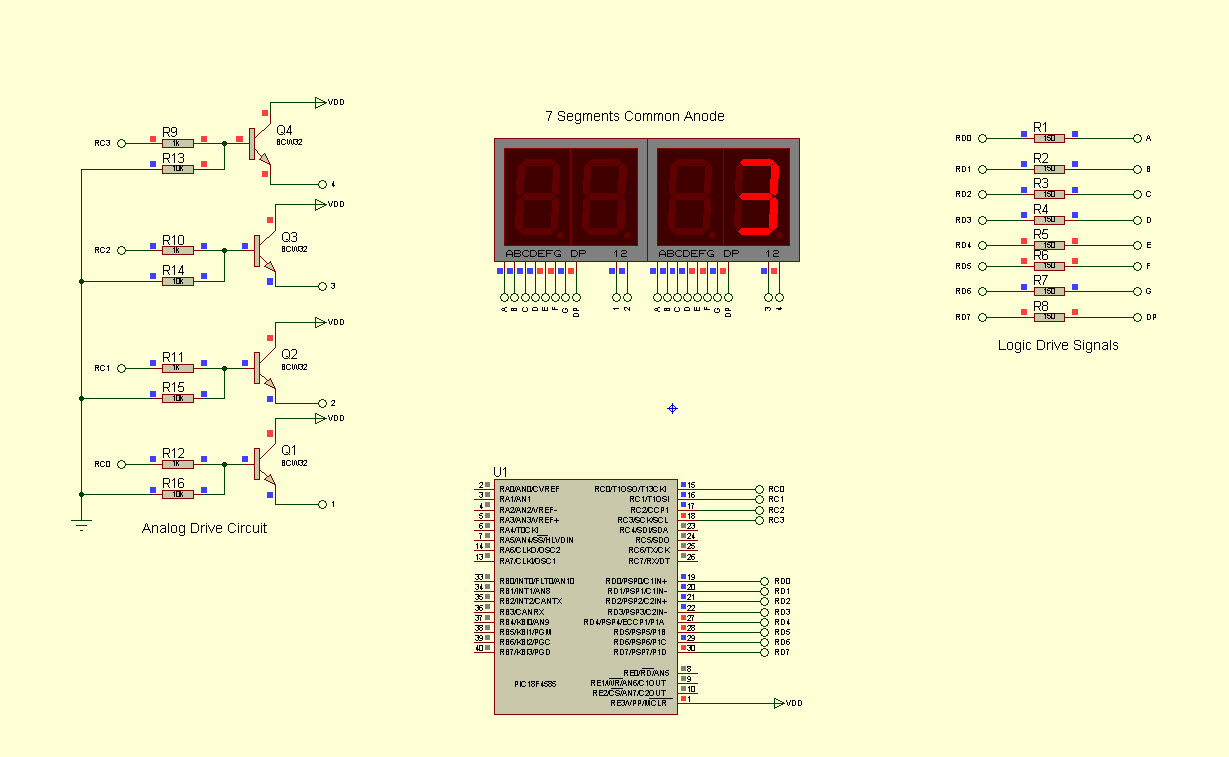

As I am working with a design using the EB008 I made a model for it in Proteus which you guys using Proteus can use for simulation
I include a hex file that runs the number 6513 on the display .
Obviously you can run your FC generated hex file and it will show your code
hope it helps some one
I include a hex file that runs the number 6513 on the display .
Obviously you can run your FC generated hex file and it will show your code
hope it helps some one
- Attachments
-
- MATRIX EB008 Model.zip
- (33.58 KiB) Downloaded 385 times
-
- 1.jpg
- (141.11 KiB) Downloaded 1042 times
