Ghost stream decode

For Flowcode users to discuss projects, flowcharts, and any other issues related to Flowcode 8.

Moderator: Benj

Post Reply
stefan.erni
Valued Contributor
Valued Contributor
Posts: 654
Joined: Fri Aug 19, 2016 2:09 pm
Location: switzerland
Has thanked: 182 times
Been thanked: 179 times

Ghost stream decode

Post by stefan.erni »

Hi Ben

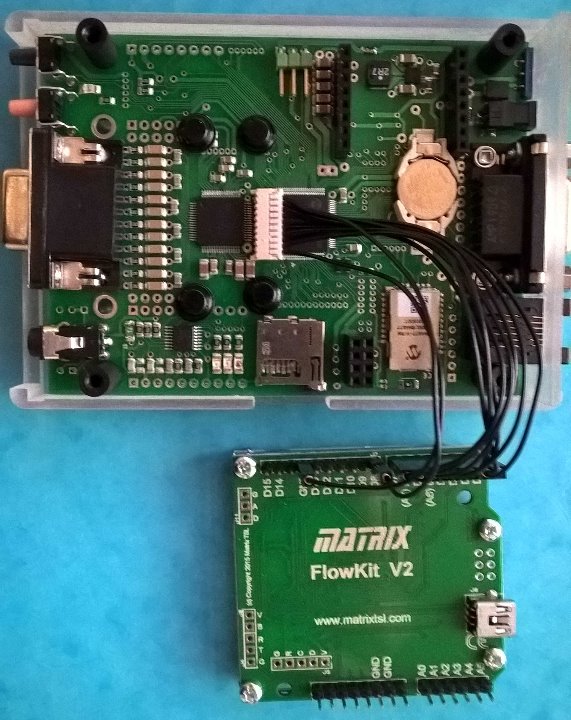

I connected the Flowkit V2 to my hardware. I just solderd a connetor to the pin's from the PIC and connect it with the Flowkit.
Then I wrote a simple program with a SPI Master like in my hardware and let it run.
The Data Recorder show the signal but how can I decode the stream? And it does not show me the clock from the SPI even the (my) osciloscope show the signal on the pin from the Flowkit V2.


(69.46 KiB) Downloaded 1330 times
ghost Option.PNG
(18.91 KiB) Downloaded 1330 times
