I have just recently completed building a couple of custom E-Blocks.
They have both been built on the EB017 Patch Board

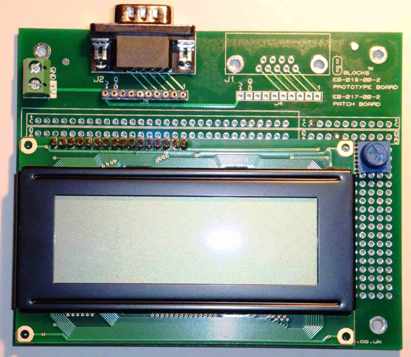

4 x 20 LCD Display
This uses a standard 4x20 LCD display from Rapid. The connections run on the back of the board to the 10 pin SIL header.
Connections are basically the same as the normal Matrix E-Block display

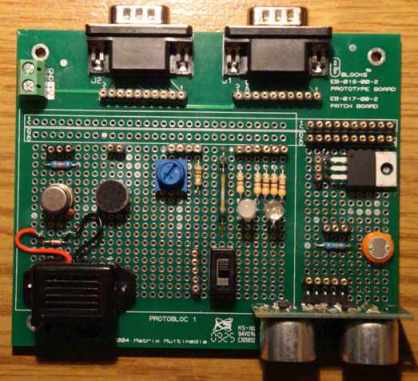

Multisensor Board
This board has a slection of the common sensors and indicators I use for experiments.
SR04 Ultrasonic Transducer
RGB Led
Bi Colour LED
Reed Relay
SPDT Switch
LM35 Temperature Sensor
LDR
Potential Divider
Microphone
Buzzer - Driven by a transistor
The SIL headers next to each sensor allow it to be connected by jumpers to the patch sockets next to the 9 way D Plugs and then connected to the Programmer
As I have 2 ports and 8 lines on each port, several sensors can be used at once, depending on the sensor and the pic type.
As can be seen there is still room to add more sensors to the board if required.
Custom E-Blocks
-
- Valued Contributor
- Posts: 1189
- Joined: Wed Dec 31, 2008 3:37 pm
- Has thanked: 460 times
- Been thanked: 523 times
Re: Custom E-Blocks
saw this and thought i would add one of the boards i made.
it has 16 x 1k pots for analougue inputs which are switchable in and out of circuit.
2 x 1k 10 turn pots (on on each block) for detailed testing and calibrating of the inputs
all with test points to test the voltages.
However with a quiescent current of 92 ma i use a seperate voltage regulator powered from the 14v supply as i do not wish to damage my muiltprogrammer especially if i am using my 4x16 display which has a back light and runs at 68 ma
steve
it has 16 x 1k pots for analougue inputs which are switchable in and out of circuit.
2 x 1k 10 turn pots (on on each block) for detailed testing and calibrating of the inputs
all with test points to test the voltages.
However with a quiescent current of 92 ma i use a seperate voltage regulator powered from the 14v supply as i do not wish to damage my muiltprogrammer especially if i am using my 4x16 display which has a back light and runs at 68 ma
steve
Success always occurs in private and failure in full view.
- JohnCrow
- Valued Contributor
- Posts: 1367
- Joined: Wed Sep 19, 2007 1:21 pm
- Location: Lincolnshire
- Has thanked: 364 times
- Been thanked: 716 times
Re: Custom E-Blocks
Hi Steve
Not sure what you would use that amout of pots for
, but being able to put a custom board together like that shows the flexibility of the E-blocks system.
The protoboards are very useful.
Not sure what you would use that amout of pots for


The protoboards are very useful.
1 in 10 people understand binary, the other one doesn't !
-
- Matrix Staff
- Posts: 9521
- Joined: Sat May 05, 2007 2:27 pm
- Location: Northamptonshire, UK
- Has thanked: 2585 times
- Been thanked: 3815 times
Re: Custom E-Blocks
Very good Steve.
I thought The Eblock range is lacking in a board that contains more than 1 pot.
Perhaps 4 pots and 4 switches on the Eblock is a good idea?
(or switchable 8 pots and 8 switches even?)
Unless it's already available that is.
Since analogue i/p's has a high input resistance.
I have used 50K with no issues at all.
Maybe other people could recommend a value?
I thought The Eblock range is lacking in a board that contains more than 1 pot.
Perhaps 4 pots and 4 switches on the Eblock is a good idea?
(or switchable 8 pots and 8 switches even?)
Unless it's already available that is.
What about using higher value of pots to reduce current draw.Steve001 wrote: it has 16 x 1k pots for analougue inputs which are switchable in and out of circuit.
2 x 1k 10 turn pots (on on each block) for detailed testing and calibrating of the inputs
Since analogue i/p's has a high input resistance.
I have used 50K with no issues at all.
Maybe other people could recommend a value?
Martin
-
- Valued Contributor
- Posts: 1189
- Joined: Wed Dec 31, 2008 3:37 pm
- Has thanked: 460 times
- Been thanked: 523 times
Re: Custom E-Blocks
hello,
in answer to johns question,
i am using a pic16f884 with 9 analougue inputs these are across ports A and B so i made so that there are 8 pots on each port that can be switched in and out of circuit with jumpers. As another pic may not have the same pins used for the inputs.
in answer to martins question,
i have a NX-877 PLUSII development board which has 5k pots on it , when the voltage was mesuared with a meter (fluke179) the voltage could be pulled down . so thats why i have used a 1k pot.
steve
in answer to johns question,
i am using a pic16f884 with 9 analougue inputs these are across ports A and B so i made so that there are 8 pots on each port that can be switched in and out of circuit with jumpers. As another pic may not have the same pins used for the inputs.
in answer to martins question,
i have a NX-877 PLUSII development board which has 5k pots on it , when the voltage was mesuared with a meter (fluke179) the voltage could be pulled down . so thats why i have used a 1k pot.
steve
