ADDITIONAL INFORMATION

The program runs the following block sequence:

Block: EEPROM.WriteByte(0x0020, .0X01)
Block: EEPROM.WriteByte(0x0021, .0X03)
Block: EEPROM.WriteByte(0x0022, .0X01)
Block: EEPROM.WriteByte(0x0023, .0X01)


But the MPLAB shows the PIC16F18444 EEPROM as:

F020 00 00 00 ...

I migrate the program from Flowcode 8 to Flowcode 10 and I observed two EEPROM byte read options:
On my original code, I used EEPROM.Read() to read a single byte of data.
On Flowcode 10 I observed the EEPROM.Read() may read 8 or 16-bits, so I changed to EEPROM.ReadByte() to read a single byte, but ...

I migrate the program from Flowcode 8 to Flowcode 10 and I observed a strange behavior when the EEPROM has been written.
On my original code, I used EEPROM.Write() to save a byte of data.
On Flowcode 10 I observed the EEPROM.Write() may write 8 or 16-bits, so I changed to EEPROM.WriteByte(), but the ...

The library update worked.
Thanks.

Please, close this issue.

I need to migrate a firmware from PIC16F18345 to PIC16F18444, due to the lack of devices on the market.

I set the new device and I did not make any change in the block code.
The compilation fails, as described below. I believe there is some error in the implementation of the PIC16F18444 code.
I am ...

I have to update many products due to the lake of PIC models in the market.
I am trying to use new models or recommendation from Microchip, but the Flowcode (v8.2.2.15 Professional Version) does not have it as component option:
PIC16F15243, PIC16F15244, PIC16F18146 e PIC16F17146.
PIC18F14Q41 ...

I would like to set the address of the I2C slave on runtime, to avoid conflict with multiple MCUs.
The I2C initialize funcion used to have two parameter (address and mask) that disapear on FC8.
a SetMask() and SefAddress() is necessary.

Mean while, I would like to know if there is any way to change ...

If you add the I2C master or slave, it is not possible to change the SDA/SCL pins and the compilation fails since there is no SCL pin declared.

MCU: PIC16818325
Flowcode: 8.2.2.15

It is not possible to select the PIC16F15225, that I need for a project.
Can you please fix it?

https://www.microchip.com/en-us/product/PIC16F15225

Flowcode: 8.2.2.15

PROBLEM FIXED! :D :D :D :D
REASON: PIC is not fast enough to work with asynchronous LED stream.
It is not feasible to generate NRZ 400x800ns running on 32MHz = 125ns instruction cycle.
I tried to use the SPI to generate the NRZ, converting 1 byte in 10 bytes with NRZ bitmap, but it does not work ...

I am still waiting for some reply.

The hardware test had to be postponed since with the PIC16F18855 cannot be programmed using PICkit3 .
I received the PICkit4 last Friday, but the LED strip does not work. Runs fine on simulation only.

To check if there is any data RS232 serial buffer it must be read, returning 0xFF when there is no data.
This 0xFF impact on USART console data, making it impossible to use. To improve the usage of the UART component, I would like to propose an approach similar to Arduino, where a FIFO (size defined ...

I am working with PIC16F18855 on Flowcode 8, but the RXINT is not working.
I ca read the serial port in main loop, using injector data, but the interrupt never happen.

I found a similar problem on V6 ( https://www.flowcode.co.uk/mmforums/viewtopic.php?t=12909 ), but I was not able to find any ...

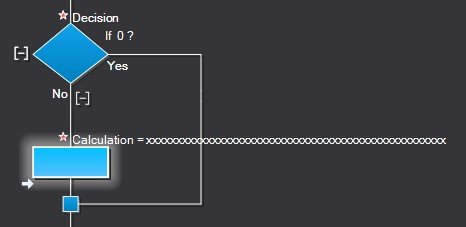

I am using flowcode 8 and I observed the decision box is ignoring the calculation box text length.
This problem does not occurs with other box than calculation.

I am running the Flowcode 8.
I want the create an interrupt handling using the zero-cross detection available on PIC16F18855, but I was not able to code it. I appreciate any help to:
1) Enable the interrupt.
2) Set the interrupt handler.

Best regards,

Fernando

I am running Flowcode 8 with PIC16F18855 at 32MHz and I don't understand the warning message for RGB LED WS2812B I selected. Besides the RGB LED tape accepted baudrate of 400Kbps or 800Kbps, it cannot be selected on property nor by the firmware algorithm.

I believe this error occurs on ...

Running Flowcode 8 emulator on PIC16F18855 I observed that:
1) Changes on EEPROM InitialValues property does not take effect on emulator.
2) Changes on Switch (Slide,PCB) polarity property does not take effect on emulator.

Does not matter if I recompile or not.

The only way the change take effect ...

Thanks
I din't know about this option.
1363 updates!

I would like to know how I can get the components back.
My INPUT has only Touch Pads (EB088) option. There is no switch or button, nor keyboard matrix.

My OUTPUT does not have any single LED option.

All those components were there before.

Best regards ...

I got the same PIC missing compiler after I upgrade the Flowcode few days ago.
It looks like there is an error on Matrix batch installation file. Please, check it and release a fix.

It is amazing that after almost 1 year the first issue it still happening.

I download and used the REPAIR option of ...

Additional comments:
The usage of Initial Value property of EEPROM component does not work properly when you need to initialize an 256-byte EEPROM. On console the EEPROM data has been overwritten many times, destroying the desired initialization.
Initialize the EEPROM by code make the coding ...

I would like to proposed an improvement on EEPROM module where the initialization should be done on multiple lines with 3 columns:
The first column is optional, for an alias label that could be used later on programming.
The second column is the EEPROM address, always considering the first EEPROM ...

And what about the properties?
If I create a property TXpin = $PORTC.3 and a local bir variable .flag , the compiled code will be the same read an input pin:

INPUT BLOCK $PORTC.3 --> .flag
CALCULATION BLOCK .flag = TXpin

and to write to an output pin:

OUTPUT BLOCK .flag --> $PORTC.3 ...

Can you please clarify the following doubts about IO in Flowcode?

Is it possible to create a macro were the PORT and/or PIN can be provided as parameter? If it is possible, can you please provide some example?
I set on panel properties panel few definitions of digital pin to be used on macros ...

That is the point.
I was not able to simulate the Hx711 on Flowcode.

The only way I had to test was upload the firmware to Arduino.
On the test I sent all Hx711 reading through the serial USB and use the Arduino serial monitor tool to read the measurements.

That is the reason I asked for the ...
