Hi

Your latest chart seems to have an issue in that I can't see the display, just the "outline".

Anyway I don't think I have your chip but I can test the component on another PIC to check activity. Probably not until the weekend though.

Regards

Ha ha....

Hi I can't imagine using it with a touchscreen, as I always have a laptop or PC around. Seems I overlooked that when I ordered. It does ask Touch / Mouse / Keyboard when opened, but the mouse option isn't great so far as I have a trackpad on laptop. I'll go through the manual when I get time and I'm...

Hi Eventually received my scope. Comes with two probes, a ten x F2F Dupont ribbon jumper (quality), and a dozen clips that can attach to the Dupont's plus a USB cable. It has two scope channels, an eight channel logic analyser and four digital output channels plus an AWG output. It seems to be well ...

Hi

If that's working OK then your oscillator and chip are running at the correct speed.

As your chart simulates in v11 I can only suggest double checking all hardware connections. If you have a logic analyser / scope you could check for activity on your Data and Clock pins (B1 / B2).

Regards

Hi

I don't have the hardware to test with, but the "count" chart simulates OK in v11 (if brightness is set to high value).

Can you try a one-second flash test on hardware just as a sanity check?

Regards

Hi

The above is a very different chart to the one you originally asked about.

What problem?

No display or not counting pulses?

Regards

Hi

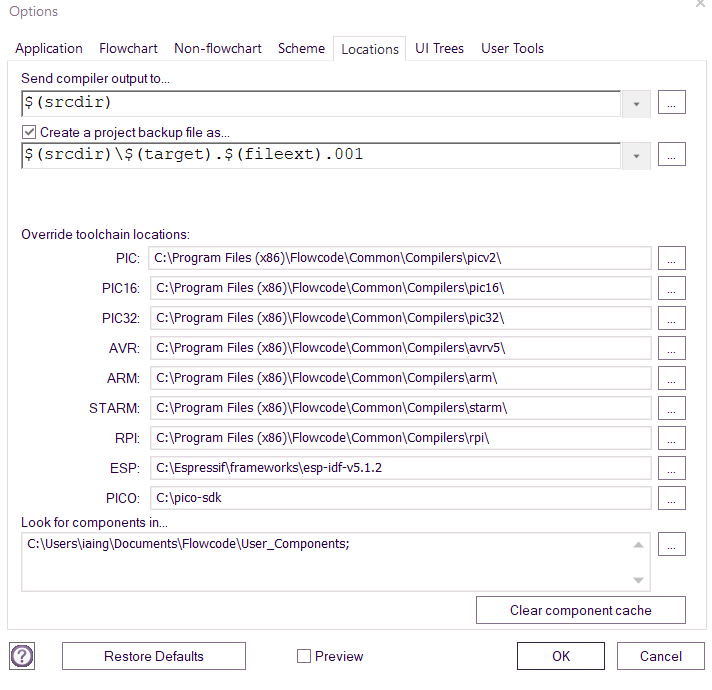

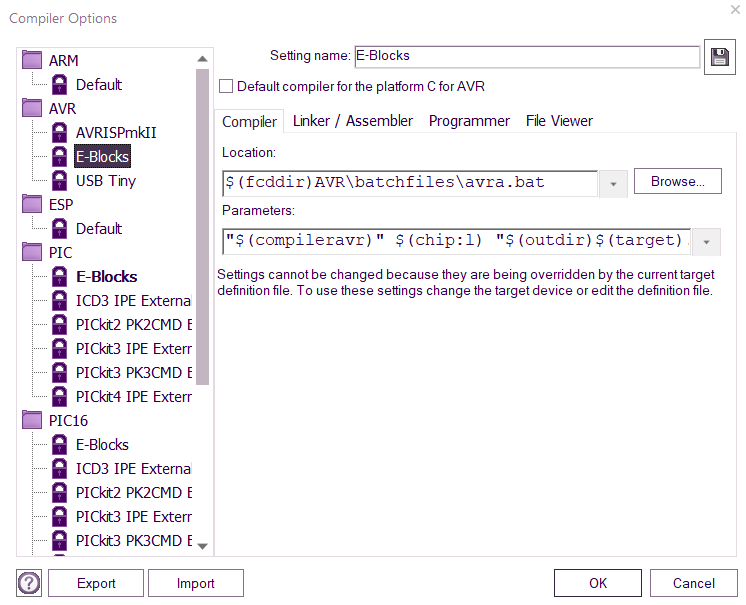

I am using the latest edition of FC with updated databases and if I change brightness to a high level, it works fine in simulation.

Can you be more specific with your issue?

Regards

Hi Following on from Wingnut, 3 x 1.5v AA batteries may not last very long as it looks like you will be powering relays as well as everything else, however that is a problem for another day. Also, you are using an external oscillator with a 19.xx crystal but your picture isn't clear enough to see if...

Hi

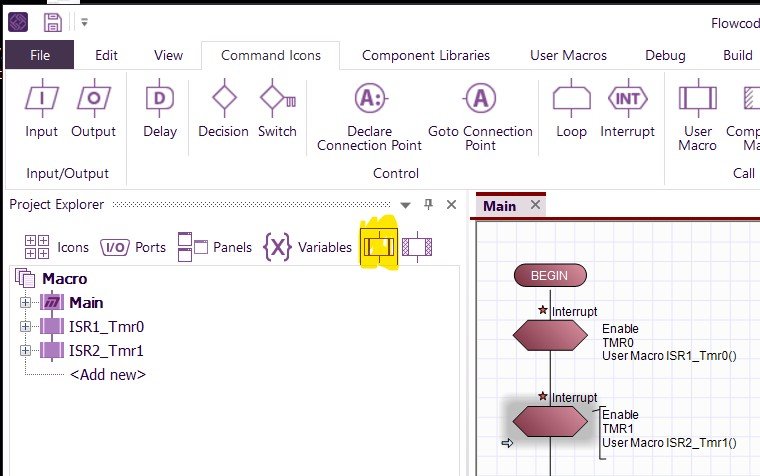

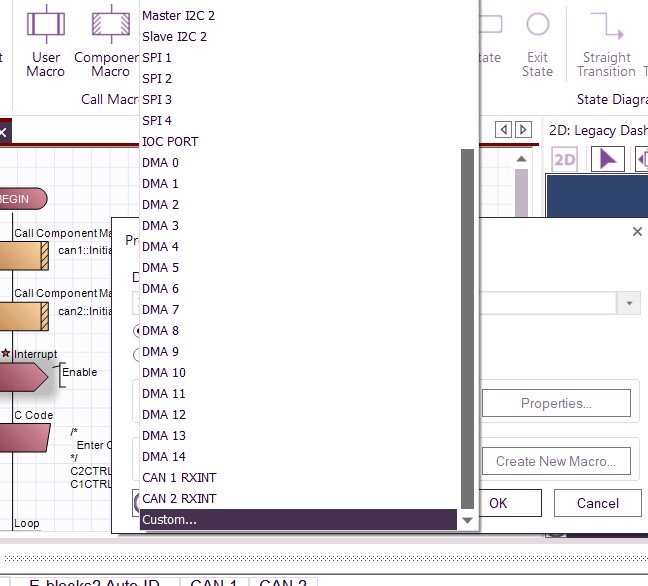

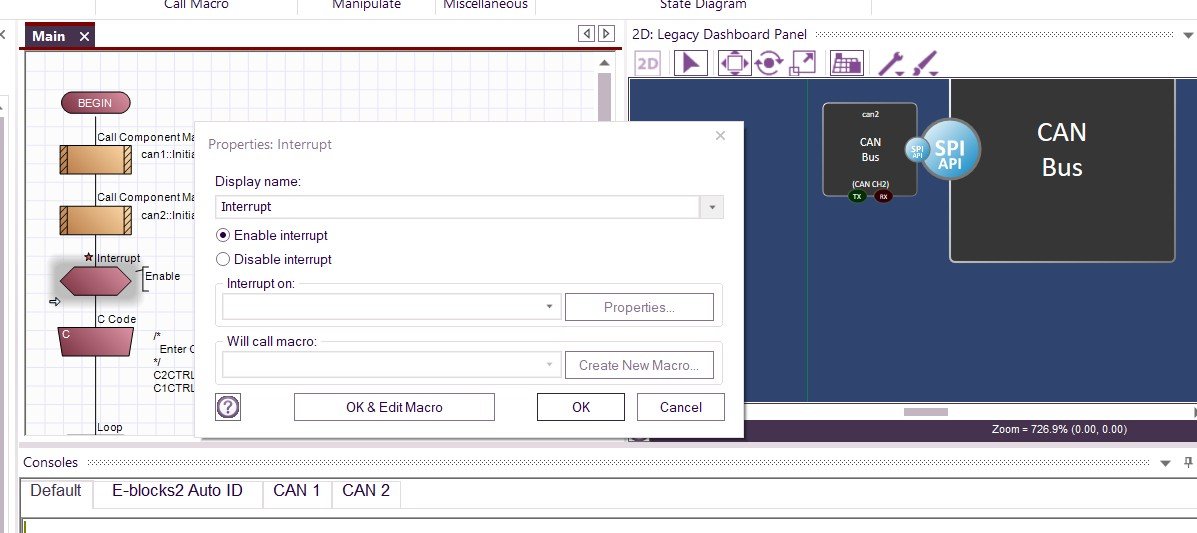

Perhaps include the timer being used in the macro name, then a quick glance in Project Explorer would show? There may well be a better way though.



Regards
