I am having timing errors with this pic on a basic flasher.
It looks to be running at 4x normal speed, I have set the delay to 2 secs to slow the led down enough for me to count the flashes. I am getting 10 flashes per 9 to 10 second time period.
The pic is on an external 4Mhz crystal.
Thanks Ian
PIC16F18345 timing errors
-
ianjoh
- Posts: 11
- http://meble-kuchenne.info.pl
- Joined: Sat Jan 30, 2021 3:42 pm
PIC16F18345 timing errors
- Attachments
-
- 16F18345_multisounder_test.fcfx
- (7.99 KiB) Downloaded 11 times
-
chipfryer27
- Valued Contributor
- Posts: 1813
- Joined: Thu Dec 03, 2020 10:57 am
- Has thanked: 404 times
- Been thanked: 622 times
Re: PIC16F18345 timing errors
Hi
You have the oscillator set wrong in Project Options.
For External Oscillator Mode between 100KHz and 4MHz you should set at XT
Software Oscillator mode should just be EXTOSC (you have it at 4xPLL which multiplies the clock by a factor of four)
Hope this helps.
PS
I moved the post to "General" as this is not a bug.
You have the oscillator set wrong in Project Options.
For External Oscillator Mode between 100KHz and 4MHz you should set at XT
Software Oscillator mode should just be EXTOSC (you have it at 4xPLL which multiplies the clock by a factor of four)

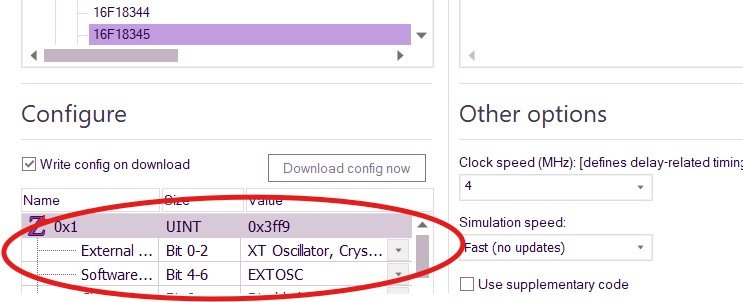

- Screenshot 2026-01-10 044318.jpg (41.93 KiB) Viewed 68 times
Hope this helps.
PS
I moved the post to "General" as this is not a bug.
Re: PIC16F18345 timing errors
Thank you that has sorted it.
Have to put that down to a late night senior moment!
