Generate own FCDX Processor Description

[knutchoco]

Hello
after the example "https://www.matrixtsl.com/mmforums/view ... hp?t=21028" I tried to convert the STM32F429ZI (144PIN) into
STM32F429VIT6 (LQFP100).

But now my target no longer works

you can provide a FCDX description and this target in the library ?

Wolfgang

[LeighM]

Please try the attached ...

[knutchoco]

uff
the result was initially the same: the next target no longer worked.
here the solution was the NRST to the ST-Link. Also "STM32 Cube Programme" connected again.
The last problem was SystemClock_Config to my board.

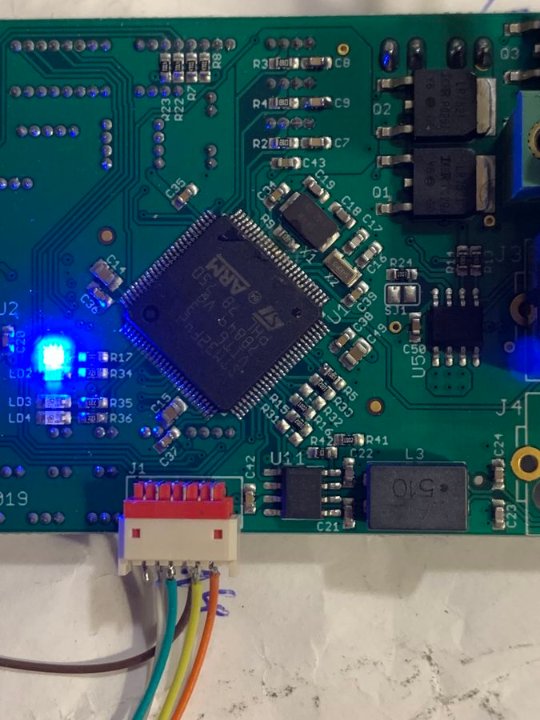

now i can program the target with flowcode

Thank you Leigh
Wolfgang

[knutchoco]

STM32F429VI

in the next step i want to use the can bus
what do you have to pay attention to here?
<!-- -->
<can remappable='3' name='CAN1' >
<tx af0='9' port0='0' pin0='11' af1='9' port1='3' pin1='0' />
<rx af0='9' port0='0' pin0='12' af1='9' port1='3' pin1='1' />
</can>
<can remappable='3' name='CAN2' >
<tx af0='9' port0='1' pin0='12' af1='9' port1='1' pin1='5' />
<rx af0='9' port0='1' pin0='13' af1='9' port1='1' pin1='6' />
</can>
<!-- -->


Example from 32F446RE.fcdx
<!-- -->
<can remappable='3' name='CAN1' >
<tx af0='9' port0='0' pin0='11' af1='9' port1='1' pin1='8' />
<rx af0='9' port0='0' pin0='12' af1='9' port1='1' pin1='9' />
</can>
<can remappable='3' name='CAN2' >
<tx af0='9' port0='1' pin0='5' af1='9' port1='1' pin1='12' />
<rx af0='9' port0='1' pin0='6' af1='9' port1='1' pin1='13' />
</can>
<!-- -->


[LeighM]

Yes, looks good!
Also D0/D1 for CAN1, so I've updated the attached FCD file, I've also added the EXTI pin support.
(One for the repo Ben
