Pi PICO No Hardware I2C on Channel 1 or Channel 2

[LeighM]

Hi,
The issue is that on Pico (and other families, such as STM32, ESP32, Raspberry Pi)
the I2C does not work at the low level "Start, Byte, Stop" (as it does on PIC etc)
You need to use the Transaction API that use data buffers.

ps. You can also use the Transaction API with PIC, the CAL does the low level stuff for you.

[chipfryer27]

Hi Leigh

Hmm, I seem to remember that.....

Regards

[chipfryer27]

Hi Leigh

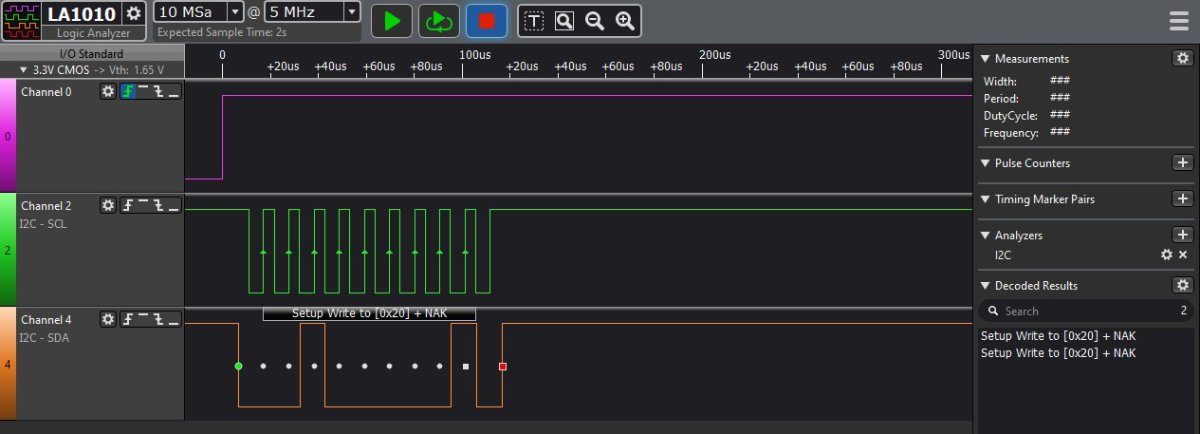

Using Transaction on Ch1

Transaction on Ch1.jpg (65.38 KiB) Viewed 3106 times

In a previous post (that I probably linked to) it did mention transactions

Regards

[jay_dee]

Hi Guys,
So if I have a User Macro that I used to read a sensor with PICs
My process for PIC was
Initialise Macro
Start, Tranmit device Address, Transmit register address, transmit Data_Byte, stop.

For PICO, ESP32 etc
I use the Transaction_Initialise Macro
then should I just do three transaction_writes?
Transaction_Write Device Address, Transaction_Write Register Address, Transaction_Write Data_Byte

Are all other macros listed are redundant, other than any Transaction_xxx macros ?
Thanks, John.

[LeighM]

Create a byte Buffer[8]
Call Transaction_Initialise (with the device address as a parameter)
Setup the Buffer data (Buffer[0] = register address, Buffer[1] = data)
Call Transaction_Write(Buffer, 2)

Are all other macros listed are redundant, other than any Transaction_xxx macros ?

For the Pico, yes
