Hello Jorge,

I made the selection of the component, but it keeps sending 0 zero.

Enrique

[ELECTRONICA67]

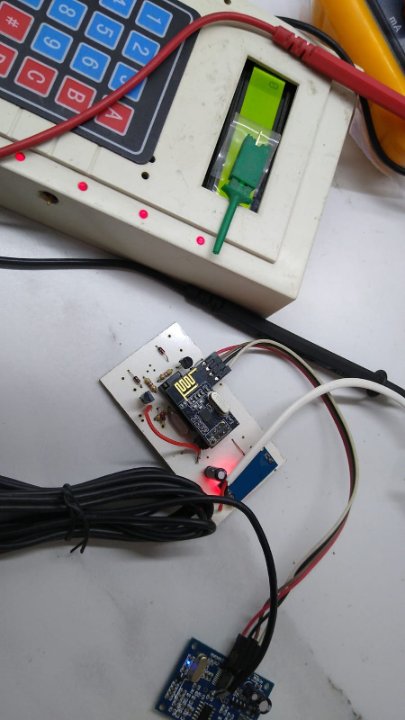

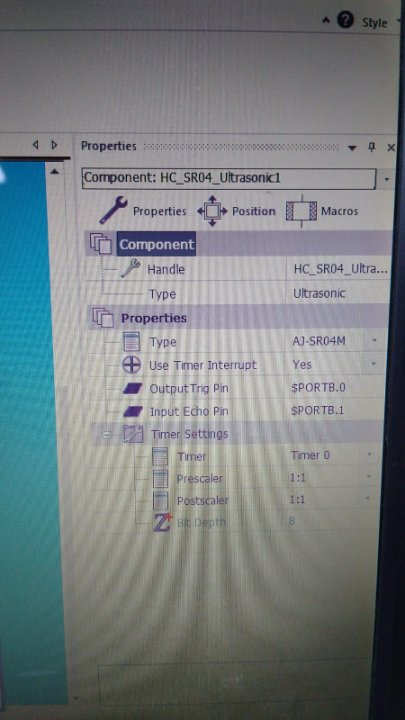

config

[jgu1]

Hi Enrique!


Have you tryed to change the timer and the prescaler and postscaler?

[ELECTRONICA67]

Hi Jorgen, I will do tests and keep you informed.

Enrique
Thanks

[ELECTRONICA67]

Thanks Jorgen and Martin

work with timer1, 1:1, 1:1 with 16 bit timer; The reading is a little unstable, but it sends a reading very close to the real one. I think it is for INT readings 0-65535 and the sensor has a reading of 20-290 that exceeds the 8 bit timer 0-255. I had thought the setting was timer0 1:1 1:1 as the base selection.

Enrique
Thanks

[jgu1]

Ok, at least it begin to work. Play with the Prescaler too.
Martin managed to make it wery flexible.
The att. examble with 8bit Pic work very fine for me, change to your kind of sensor. And for Arduino. Have a look

Good luck

Jorgen

[ELECTRONICA67]

Thanks Jorgen, I'm going to test these two examples on Arduino and PIC, I appreciate the help.

Enrique
Best Regards

[medelec35]

Thanks Jorgen

Hi Enrique,
If you are still having issues, then can you post your .fcfx file and I will see if I can spot what's going on

[ELECTRONICA67]

Thanks Martin, I'll let you know, I appreciate the help.

Enrique
Best Regards
