Flowcode V3 introduced to me as a student at a university course where eblocks development doards were used with it.
I used FC V3 a lot for a long time and i upgraded to next version FC5, FC7,FC8,FC9 and FC10 which i am using at the moment.
Flowcode is α powerful tool and the development team behind it rocks.
History of Flowcode
-
george_b
- Posts: 21
- http://meble-kuchenne.info.pl
- Joined: Fri Jul 01, 2022 5:00 pm
- Has thanked: 9 times
- Been thanked: 3 times
-
chipfryer27
- Valued Contributor
- Posts: 1528
- Joined: Thu Dec 03, 2020 10:57 am
- Has thanked: 353 times
- Been thanked: 549 times
Re: History of Flowcode
Hi
Thought I'd update with the latest edition to my arsenal.
Pictured below is a SysBlocks board. This pretty much is a "lab on a board" for experimenting with DSP. It came with two SMA to SMA leads, two SMA to BNC adapters, a BNC T-Piece and a 3.5mm to 3.5mm stereo jack lead (auxiliary lead).
Powered either by a DC adapter or via USB, it has two rotary encoders, two led bar graphs, a few leds and a couple of buttons. It uses a USB-B so you get a good soiid connection.
It also has a couple of E2-Block connectors to allow connection to either other Marix modules or to breakout modules, and a Grove connection too.
If you have a scope then you probably have BNC leads / connectors already, so it is pretty much ready to go straight out of the box.
Regards
Thought I'd update with the latest edition to my arsenal.

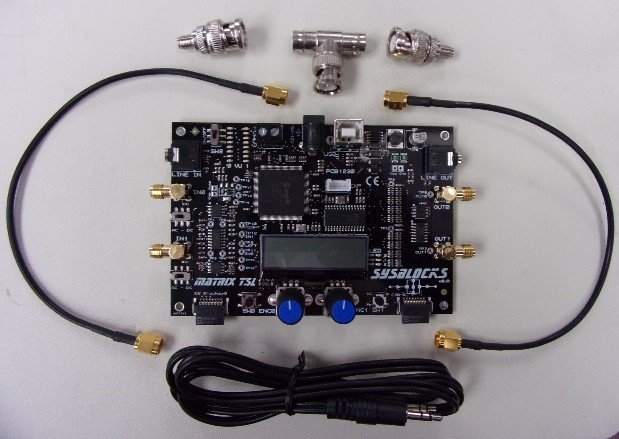

Pictured below is a SysBlocks board. This pretty much is a "lab on a board" for experimenting with DSP. It came with two SMA to SMA leads, two SMA to BNC adapters, a BNC T-Piece and a 3.5mm to 3.5mm stereo jack lead (auxiliary lead).
Powered either by a DC adapter or via USB, it has two rotary encoders, two led bar graphs, a few leds and a couple of buttons. It uses a USB-B so you get a good soiid connection.
- SysBlocks.JPG (61.97 KiB) Viewed 9846 times
It also has a couple of E2-Block connectors to allow connection to either other Marix modules or to breakout modules, and a Grove connection too.
If you have a scope then you probably have BNC leads / connectors already, so it is pretty much ready to go straight out of the box.
Regards
