String Manipulation Functions

See Calculation Icon Properties

String Functions

The String functions are a set of string manipulation functions that can be used to edit, change and examine the strings.

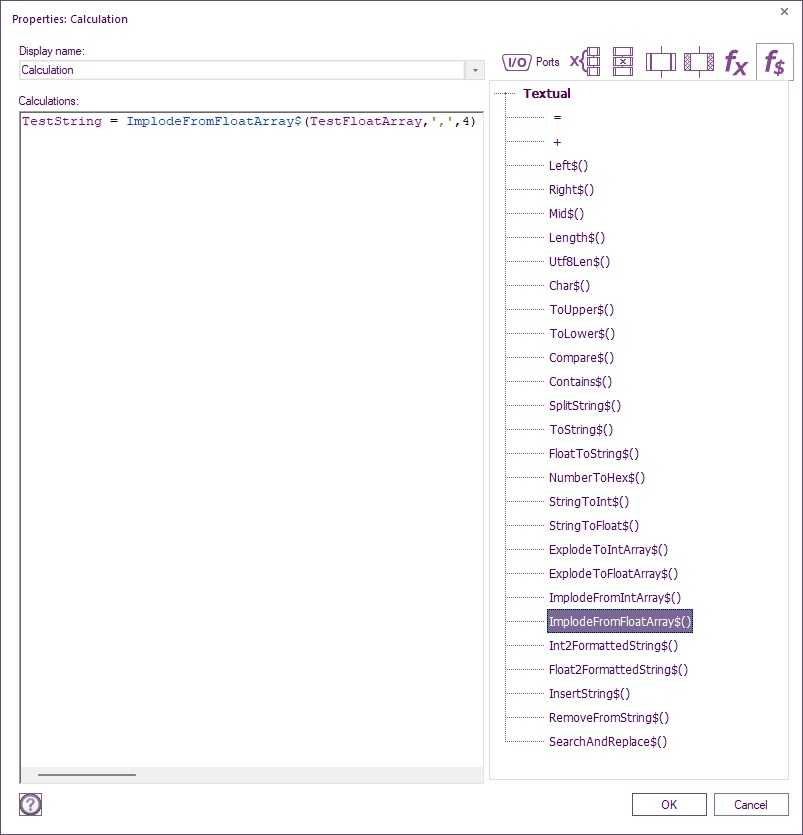

To add a function, drag it into the calculation box or double click. The user can then edit this base code with the variables required.

→

→

Example Strings used in explaining the functions below:

Str1[20]

Str2[20]

TestStr[40]

=

To assign a string value to a string variable you can simply use the = character.

Str1 = "Hello "

Str2 = "World"

Strings can also be treated like byte arrays to allow you to manipulate the individual bytes. For string data to work correctly with other string functions the end of the data must be signified with a 0 or null byte.

Str1[0] = 'H'

Str1[1] = 'e'

Str1[2] = 'l'

Str1[3] = 'l'

Str1[4] = 'o'

Str1[5] = ' '

Str1[6] = 0

Assigning a string constant to a string variable will automatically add the null byte to the end of the string for you.

Str1 = "Hello "

Strings can also be used with escape characters such as \n (newline), \r (carriage return), \t (tab), \xXX (hexadecimal byte value), \\ single backslash character.

Str1 = "Hello\n\rWorld"

+

Concatenates the two string together in the order presented from left to right.

If the resulting string is longer than the array size of the receiving string then any extra characters are lost.

Str1 = "Hello "

Str2 = "World"

TestStr = Str1 + Str2

TestStr is now "Hello World"

Multiple concatenations are best done like this to avoid using excess memory. Note that each line contains only two values to be added together.

TestStr = "Multiple " + Str1

TestStr = TestStr + Str2

TestStr is now "Multiple Hello World"

NOTE: Due to a limitation in generated code the result of multiple concatenations in one operation is limited to 20 characters. So the result of Str1 + Str2 + Str3 should not exceed 20 characters.

Left$(string, size)

Retrieves a substring from the string of size characters starting from the leftmost character.

If the length of the string used to store the result is less than size of the substring returned then any extra characters are lost.

TestStr = Left$(Str1, 3)

TestStr is now "Hel"

Right$(string, size)

Retrieves a substring from the string of size characters starting from the rightmost character.

i.e. a size of 4 retrieves the 4 rightmost characters.

If the length of the string used to store the result is less than size of the substring returned then any extra characters are lost.

TestStr = Right$(Str1, 3)

TestStr is now "lo "

Mid$(string, start, size)

Retrieves a substring from the string starting at position start of size characters. The first character of the string is at position zero.

If the length of the string used to store the result is less than size of the substring returned then any extra characters are lost.

TestStr = Mid$(Str1, 2, 3)

TestStr is now "llo"

Mid$ String Example

Length$(string)

Retrieves the length of the string.

This is not the number of byte elements in the string variable, but the number of characters in the array before an ASCII Null character is encountered.

Str1 = "Hello "

RetVal = Length$(Str1)

RetVal is now 6

Length$ String Example

Char$(string, number)

Retrieves a single byte from the specified position in the string.

Str1= "Hello"

RetVal = Char$(Str1, 0)

Retval is now 'H'.

RetVal = Char$(Str1, 4)

Retval is now 'o'.

RetVal = Char$(Str1, 5)

Retval is now 0 (NULL terminator to mark the end of valid data).

String bytes can also be accessed directly using standard C square bracket array notation.

RetVal = Str1[4]

Retval is now 'o'.

Char$ String Example

ToString$(value)

Changes the numeric value or variable to a String.

TestStr = ToString$(1234)

TestStr is now "1234"

ToUpper$(string)

Changes all letters to upper case.

TestStr = ToUpper$(Str1)

TestStr is now "HELLO "

ToLower$(string)

Changes all letters to lower case.

TestStr = ToLower$(Str1)

TestStr is now "hello "

Compare$(string1, string2, compare_type)

Compares the two strings, parameters 1 and 2, and returns a BYTE value corresponding to the following results:

• 0 = strings are identical
• 1 = string1>string2
• 255 = string2>string1

The 3rd parameter, compare_type, determines whether or not the check is case sensitive. values for compare_type are:

• 0 = case sensitive
• 1 = case insensitive.

Examples

Str1 = "ABC"

Str2 = "abc"

RetVal = Compare$(Str1, Str2, 0)

RetVal is now 255 as Str2 is later in the ASCII sequence.

RetVal = Compare$(Str1, Str2, 1)

RetVal is now 0 as when case insensitive the two strings are identical.

Str2 = Str1

RetVal = Compare$(Str1, Str2, 0)

RetVal is now 0 as both strings are identical.

String Compare Example

FloatToString$(float)

Converts a floating point number into a string.

float = Floating point number to convert.

string = String variable to hold the conversion data.

string = FloatToString(float, NumberOfDecimalplaces)

E.g to round a float to 2 decimal places you can use

string = FloatToString(float, 2)

The number of decimal places can be omitted so you can have

string = FloatToString(float)

Float To String Example

NumberToHex$(number)

Converts a byte or int number into a hexadecimal string.

number = byte or integer number to convert.

string = String variable to hold the conversion data.

string = NumberToHex( number )

Number To Hex String Example

StringToInt$(string)

Converts a string of numeric ASCII data into an integer numeric data value.

string = String variable containing numeric ASCII data.

returns numeric data from the string in decimal form.

number = StringToInt$( string )

StringToFloat$(string)

Converts a string of numeric ASCII data into a floating point variable.

string = String variable containing numeric ASCII data.

returns numeric data from the string in floating point form.

float = StringToFloat$( string )
