Hi Ben,

My apologies I have been out of town I will send some data tomorrow, my apologies for the delay

Regards,

Gavin

Hi All,

Would anyone know why my program is crashing?,

I have an OLED, DS18B20 and UART component loaded. Once I added the UART Component that's when it looks like it started crashing.

Any help would be great appreciated

Regards,

Thanks so much!

Will check it out and revert back!

Hi All, Has anyone tried to code the ESP32 and MOBUS Master or Slave?, I can't get either to work and I keep getting a compile error. I am wanting to read the Registers 300001 to 300035 on an electricity meter, I have the code running in Arduino using an UNO and trying to get this working in Flowcod...

Hi Leigh,

I do see it change, only issue the amplitude of the FC is way smaller to that is the Arduino code.

The motor is doing nothing, no sound neither.

I have also connected the enabled but I see it should be connected to GND, I have changed the FC to suite, please see attached.

Regards,

Gavin

Hi Leigh,

I changed the Polarity of the LED , it still has no effect on the motor,

Regards,

Gavin

Hi Leigh,

Thanks for the response, please see attached Scope Plots

SDS00006 is the FC and SDS00007 is from the Arduino Code - looks like the FC is inverted to that of the Arduino Code?


Regards,

Gavin

Hi All, I am using a DQ542MA Stepper driver with a NEMA 23 Motor, I have the attached Arduino program below working and tried to convert the Arduino to flow code using a LED as a component. I can't seen to get the FC to run at all, any advice on how to get it running in FC? Many Thanks, Regards, Gav...

Hi Medelec,

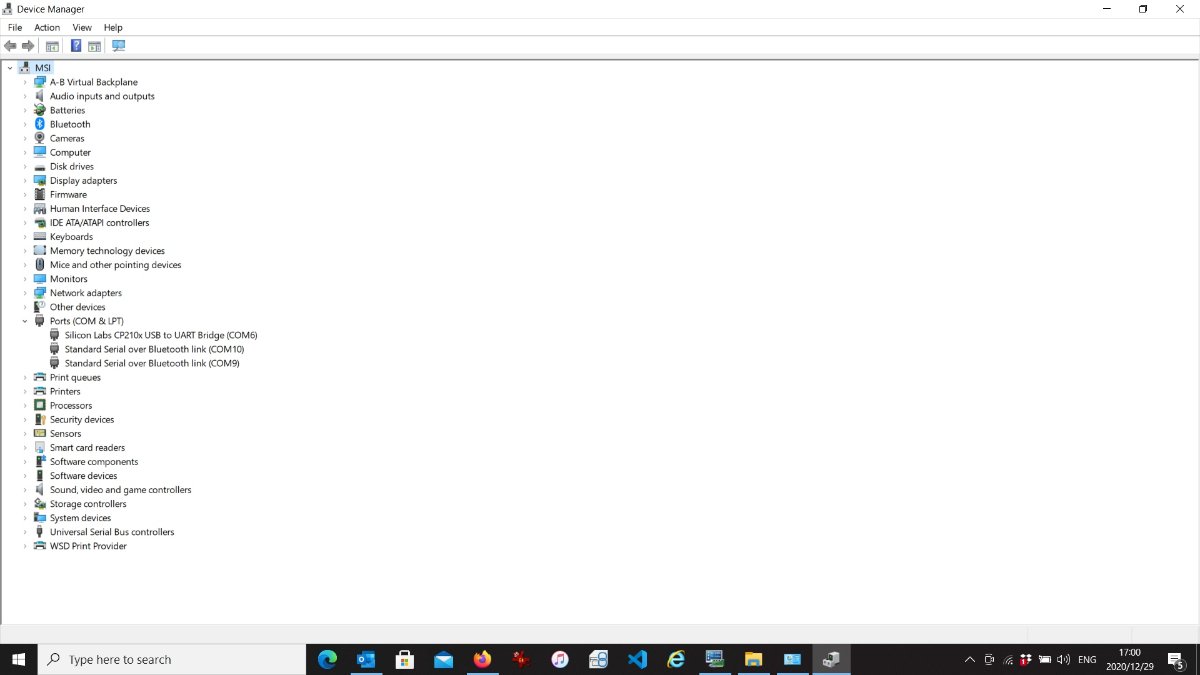

Yes please see attached, ESP32 is on Comport 6

Here the whole log Target folder: D:\My Documents\Flowcode 9 Code Source name: D:\My Documents\Flowcode 9 Code\ESP32 Samples.fcfx Title: ESP_32_Test Description: Device: ESP.ESP32.ESP32_WROOM_32 Generated by: Flowcode v9.0.0.23 Date: Monday, December 28, 2020 08:17:37 Users: 1 Registered to: gavo (g...
