ESP32 Board with AXP192 Power management

[stefan.erni]

Hi Ben

On my board I have AXP192 Power management IC.
I like to read a register and later write in the register
I have a sample code but I don't know to translate this in flowcode.
I'm always reading 255


here the democode:

uint8_t AXP192::Read8bit( uint8_t Addr )
{
Wire1.beginTransmission(0x34);
Wire1.write(Addr);
Wire1.endTransmission();
Wire1.requestFrom(0x34, 1);
return Wire1.read();
}

Here my program:

FC9_M5Stack1_spi_display_adx192-1.fcfx

(14.4 KiB) Downloaded 145 times

Some info about all the register:
https://github.com/RolandoMagico/TTGO-T ... nformation


regards


Stefan

and the democode:
https://github.com/m5stack/M5StickC/blo ... AXP192.cpp

[BenR]

Hi Stefan,

You were on the right track.

Give this a whirl, fingers crossed

FC9_M5Stack1_spi_display_adx192-1.fcfx

(15.58 KiB) Downloaded 144 times

[BenR]

Here's another version with the write function.

FC9_M5Stack1_spi_display_adx192-1.fcfx

(17.22 KiB) Downloaded 153 times

[stefan.erni]

Hi Ben

I tried both versions but I always get 0. With the oscilloscope I have clock and data on the correct pin.

regards

Stefan

[stefan.erni]

Hi Ben

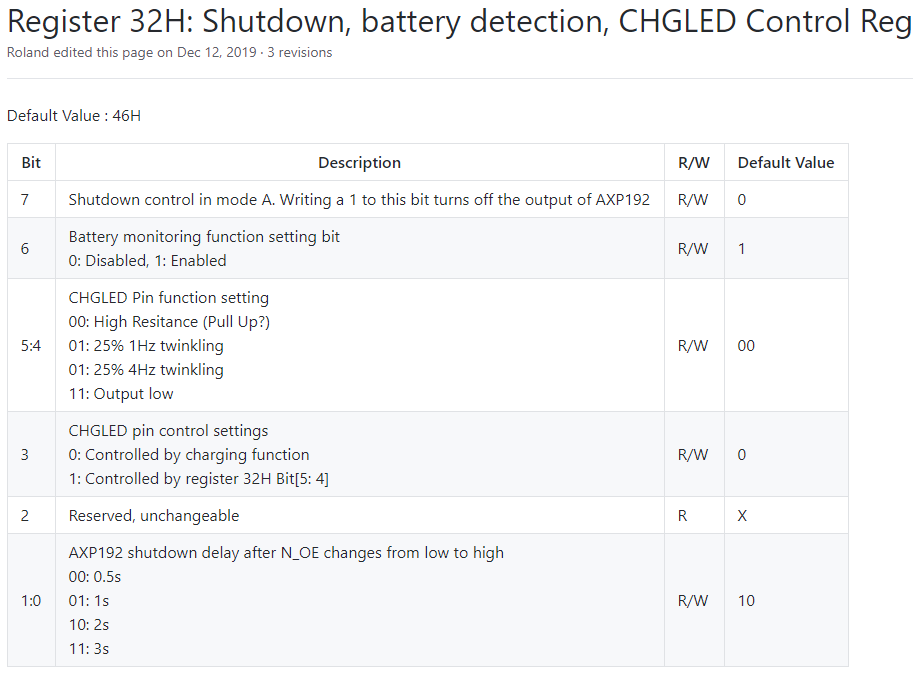

I think the register 32h is 0.

I tried some another register with your first code and there I get the correct value.


regards

Stefan

[BenR]

Hi Stefan

In the example code there is a far bit in the initialise function code. It might be it needs setting up to work as expected?
