App Developer Led Array on/off reversed

[stefan.erni]

Hi Steve

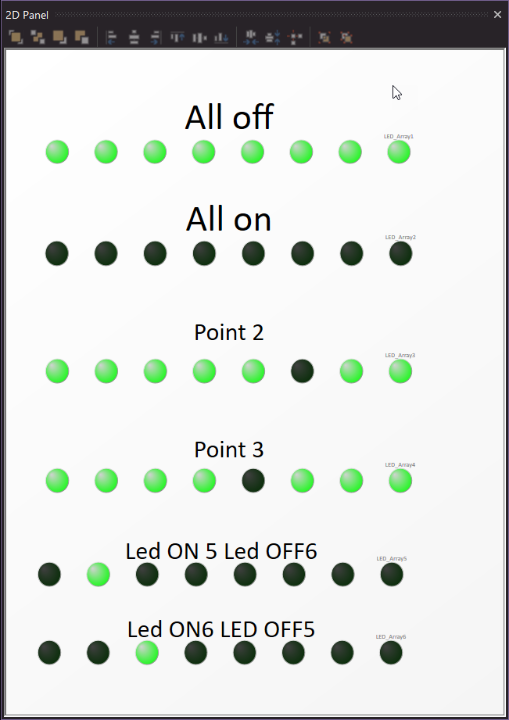

on and off are somehow interchanged and also to set a led on/off is not correct.
And a few small wishes....
Would it also be possible to make the label font size adjustable?
and the off colour selectable?

So you can use it only as small array with three or two leds or even as a single indicator.
and I can use this on both panel
regards

Stefan

Led_array_test.fcsx

(36.3 KiB) Downloaded 447 times

Demo for a record button with additional display whether recording is already in progress or has started or cannot be started


on and off are somehow interchanged


[Steve-Matrix]

If you want customised fonts, etc, then it might be easier to just use primitive text and shapes for the indicators.

[medelec35]

Hi.
Many thanks for the bug spot
Can you try with the attached component, please?

[stefan.erni]

Hi Martin

i have copied the component to
C:\Program Files (x86)\Flowcode v10\DefaultData\FlowcodeV10\Components
and it replaced the old one.
Started FC again, but no change in the component or function


regards

Stefan

[medelec35]

Hi Stefan.
That is the wrong location.
The components are copied from that location to the location below only when Flowcode is first installed
Browse to this location using file explorer, it's hidden by default so just paste the link into your address bar.

Code: Select all

C:\ProgramData\MatrixTSL\FlowcodeV10\Components

save the attached component from the post above in the above location
If Flowcode is already open, then you will need to reload your project for the new components to work.

[stefan.erni]

Hi Martin

Perfect! Yes it's working nice.
Also test the Bargraph and WriteValue, and this works nice.

regards

Stefan

ols vs new


[medelec35]

That's great!.
Thank you for the update.
I'm glad your project is now working as expected.
I have requested the updated component to be pushed on the update system ASAP.

[stefan.erni]

Hi Martin

Thanks for the quick support.
But still a small problem as in the topic
https://flowcode.co.uk/forums/viewtopic.php?f=5&t=1864
Also this LED does not change correct.
I have used the traficligth at the moment

regards

Stefan
