Write component property to sd-card

[stefan.erni]

Hi Ben

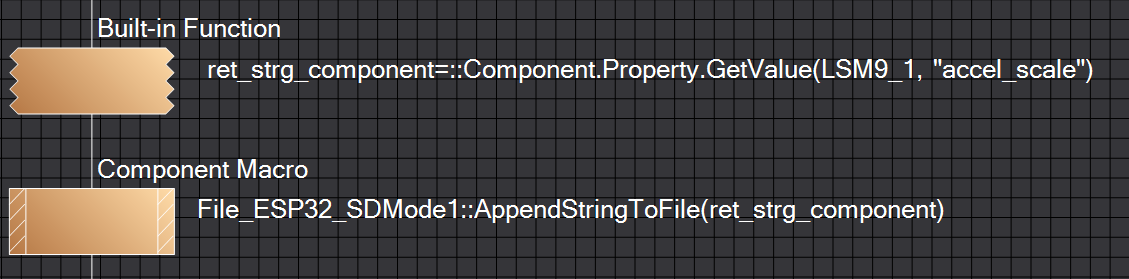

I would like to write the component propertis at the beginning of the Excel file.
Append string works with a text, but not with the build in function created string.
Does it work the way I program it?

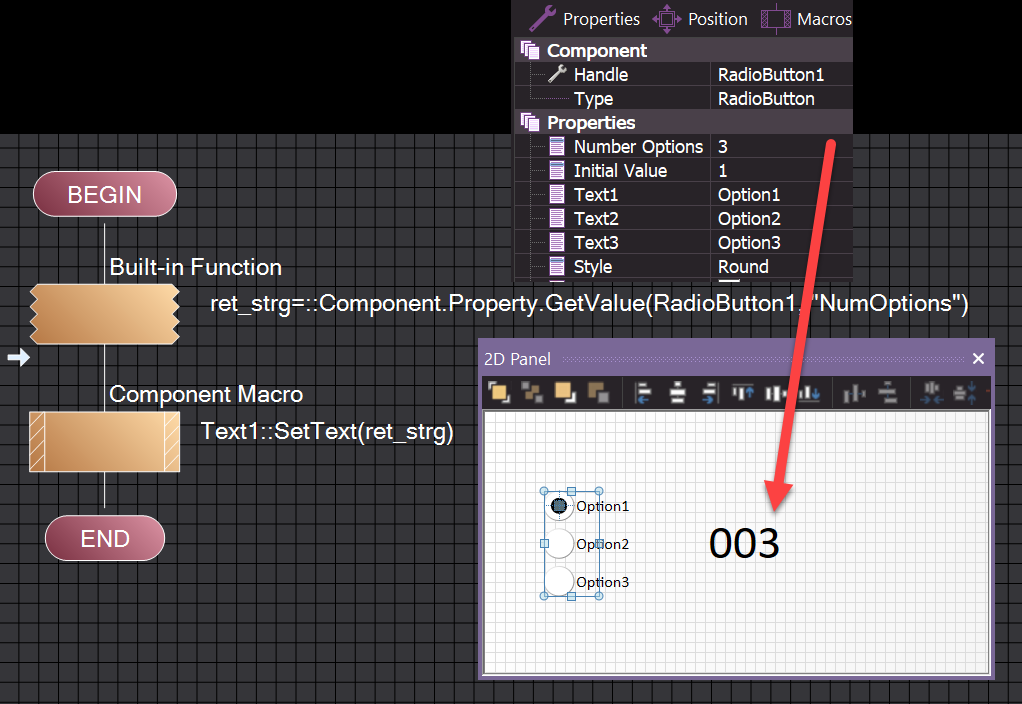

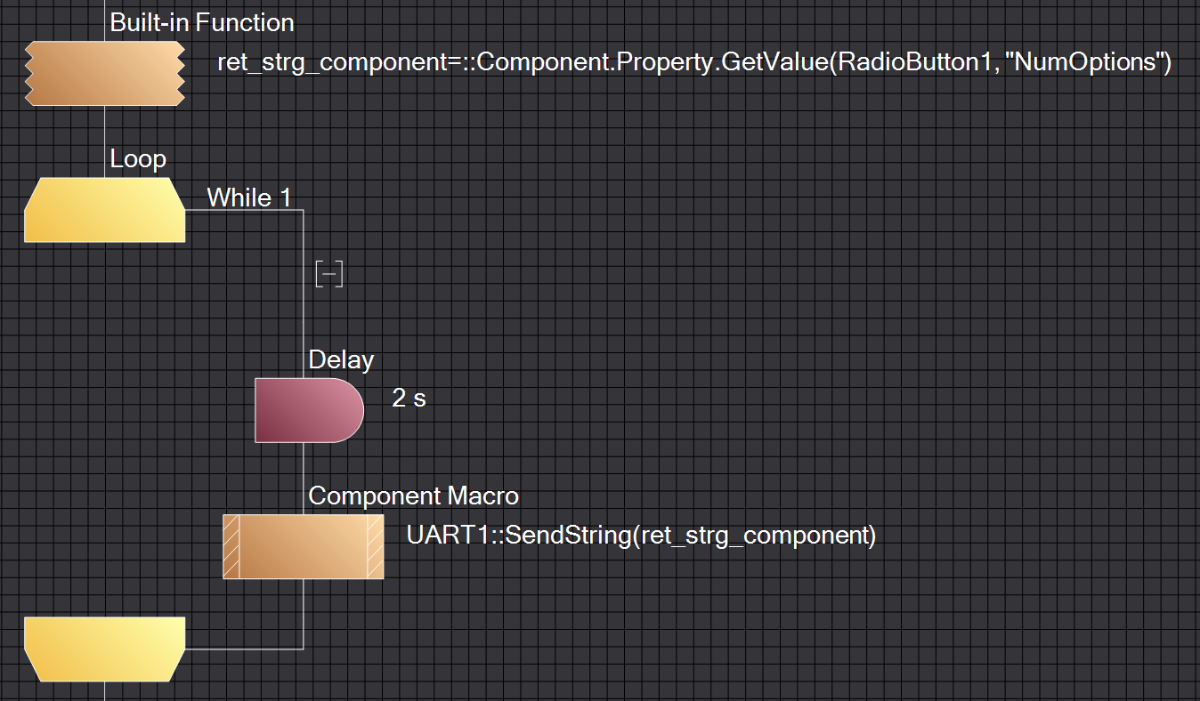

[stefan.erni]

It's working in AppDevelopper
but not in the ESP32 program

property_test1.fcsx

(11.63 KiB) Downloaded 328 times



[BenR]

Hello,

Hmm this one is a little tricky as you can't directly reference component properties.

One trick would be to do the following.

1) Click on a blank area of the panel to select the panel and in the properties window create properties to hold the values

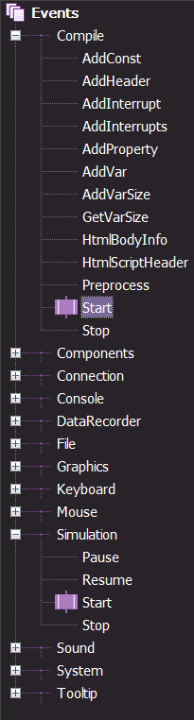

2) Add a macro to the Compile Start event and to the Simulation Start event, this can be the same macro for both events
3) Inside the Compiler Start macro copy the value of the property you want to your local property
4) Reference the local properties in your program as you would variables

That should work.

I've included an example.

PropertyReferenceExample.fcfx

(16.41 KiB) Downloaded 252 times

Let us know how you get on.

[stefan.erni]

Hi Ben

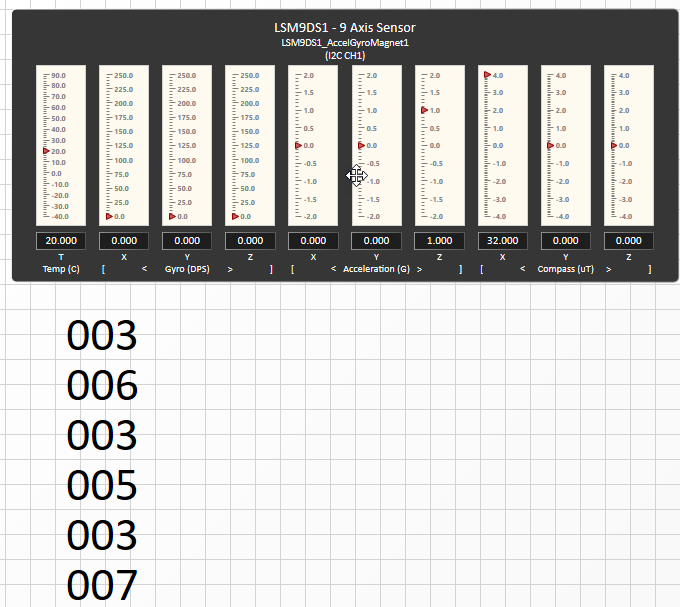

I have tried but I probably only get the index of the switch and not the text of the property

CSV_number_lsm9.fcfx

(25.93 KiB) Downloaded 381 times


[BenR]

Hello,

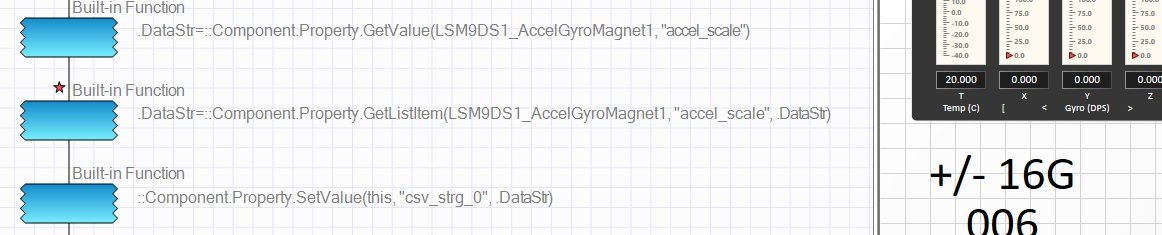

GetValue returns the property value, if instead you want the label string then use the GetListItem function to get the label assigned to the value.


[stefan.erni]

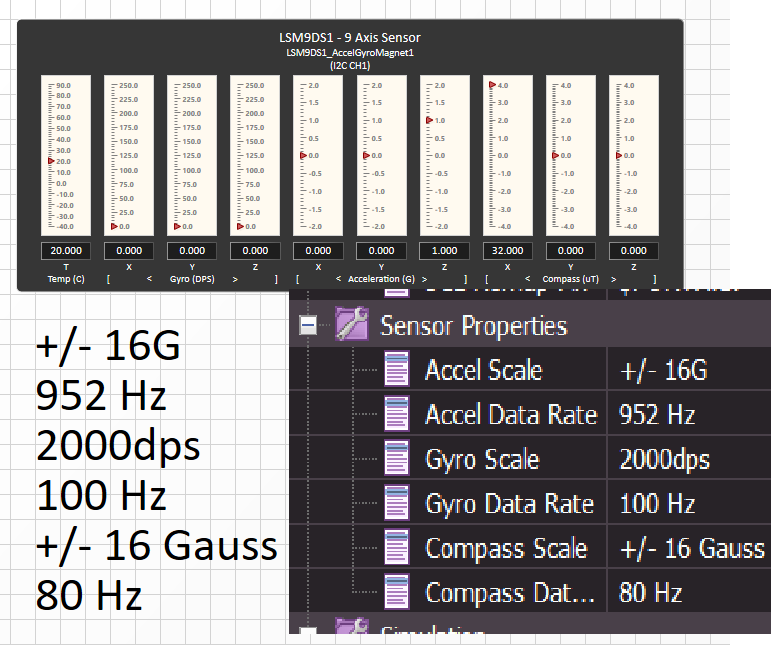

Hi Ben

Yes this way is perfect.
Unfortunately working only in the simulation. I cannot compile to hex. There is a fail.

CSV_post2.fcfx

(30.28 KiB) Downloaded 371 times


[BenR]

Hello,

Compiling now. Could be the sim event macro is missing a return value and the ESP32 compiler is complaining about that.

Just add a calculation saying .Return = 1

[stefan.erni]

Hi Ben

I add but still fail compile to hex. Sim is always ok
