App Builder Interrupt problem

[wayne_millard]

Hi Team,

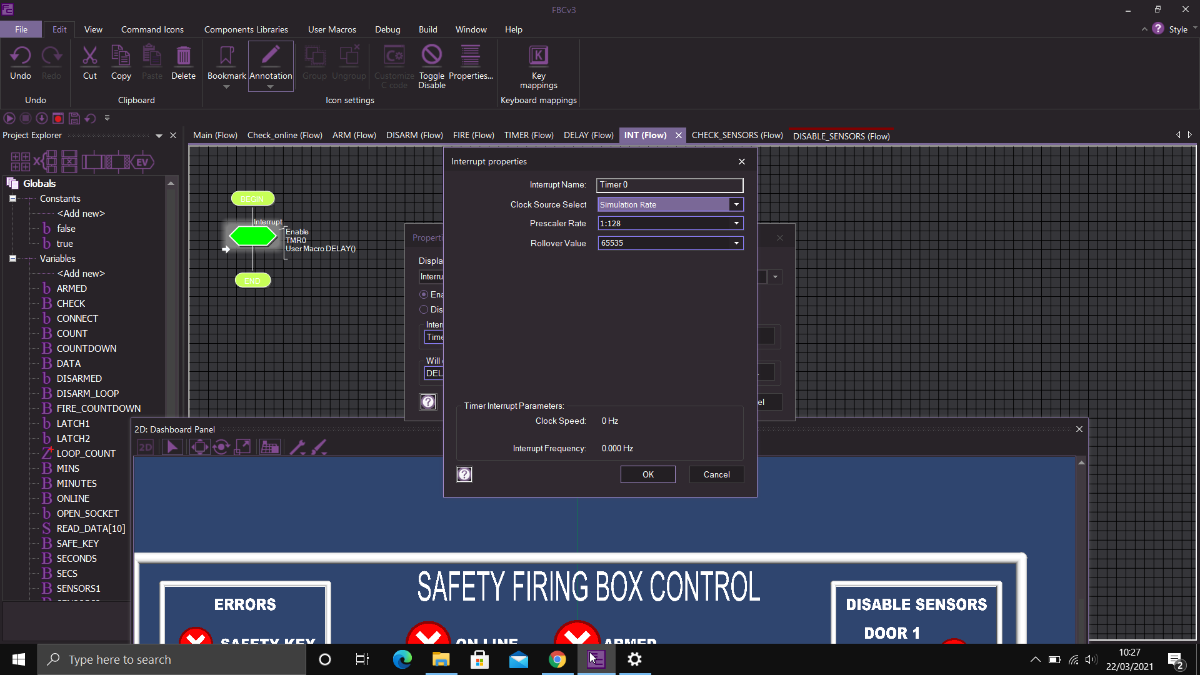

Since i had the problem of not being able to open the project i now have a problem that the interrupt does not have a clock frequency.
How can i fix this i have tried the following.
1. delete the interrupt icon and replace.
2. unistall flowcode v9 and reistall.
but still not working.


Thanks,
Wayne M

[BenR]

Hi Wayne,

Hopefully I have solved the problem for you in your othr topic.

Basically the path to the App Developer "target" definition file somehow got corrupted or changed.

from target='SCADA.SCADA.GENERIC'

to target='..GENERIC'

The definitions deal with things like available interrupts and could explain the new bug you are seeing.

[wayne_millard]

Hi Benj,

Thanks for the file fix but still have problem with the interrupt having no clock frequency.

Thanks,
Wayne M

[medelec35]

Hi Wayne, just curious to what the interrupt frequency you are interested in?
E.g. are you interested in a second (or even milliseconds) time interrupt?

[wayne_millard]

Hi Martin,

Yes 1 second is what i want. before it went all wrong it have a clock frequence that the interrupt worked from but have a frequency of 0hz now.

wayne

[medelec35]

In that case you don't really want to use the interrupt.
Use the Timed Event Trigger instead.
I was really amazed at the accuracy!
Much better than interrupt.
I Ran it and compared with a stopwatch.
It was still spot on to the second an hour later.

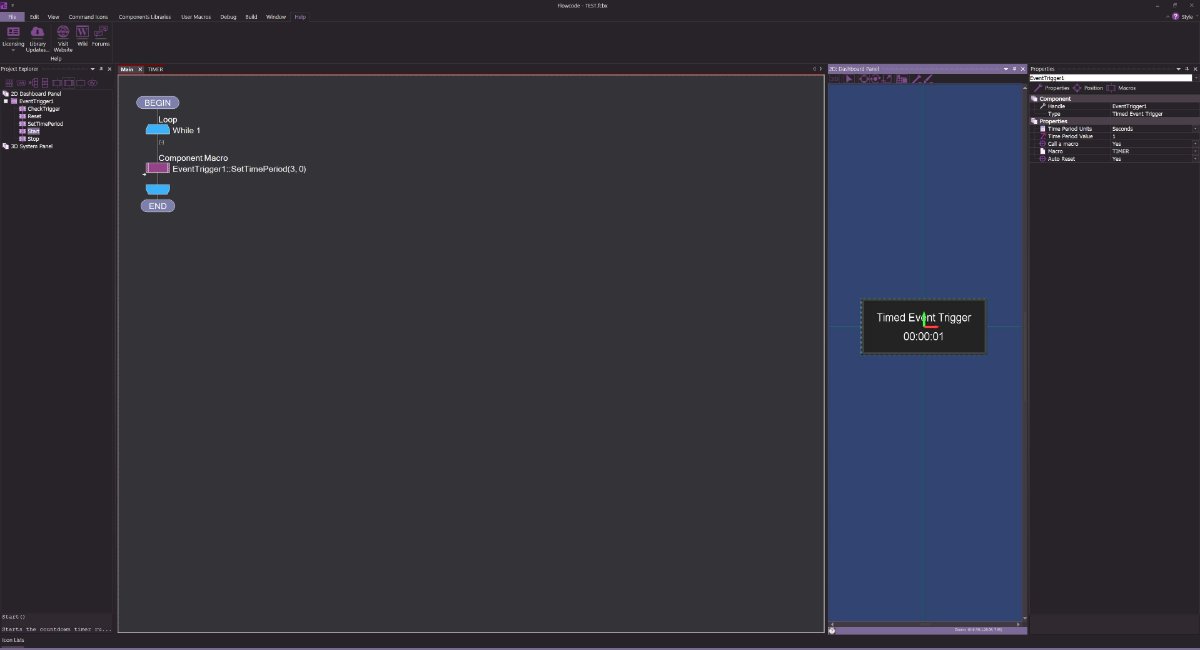

It's easy to set up for 1 second intervals:

Timed Event Trigger.png (17.9 KiB) Viewed 4681 times

[wayne_millard]

Hi Martin,

I do not see what you have on your event timer.
what am i doing wrong?

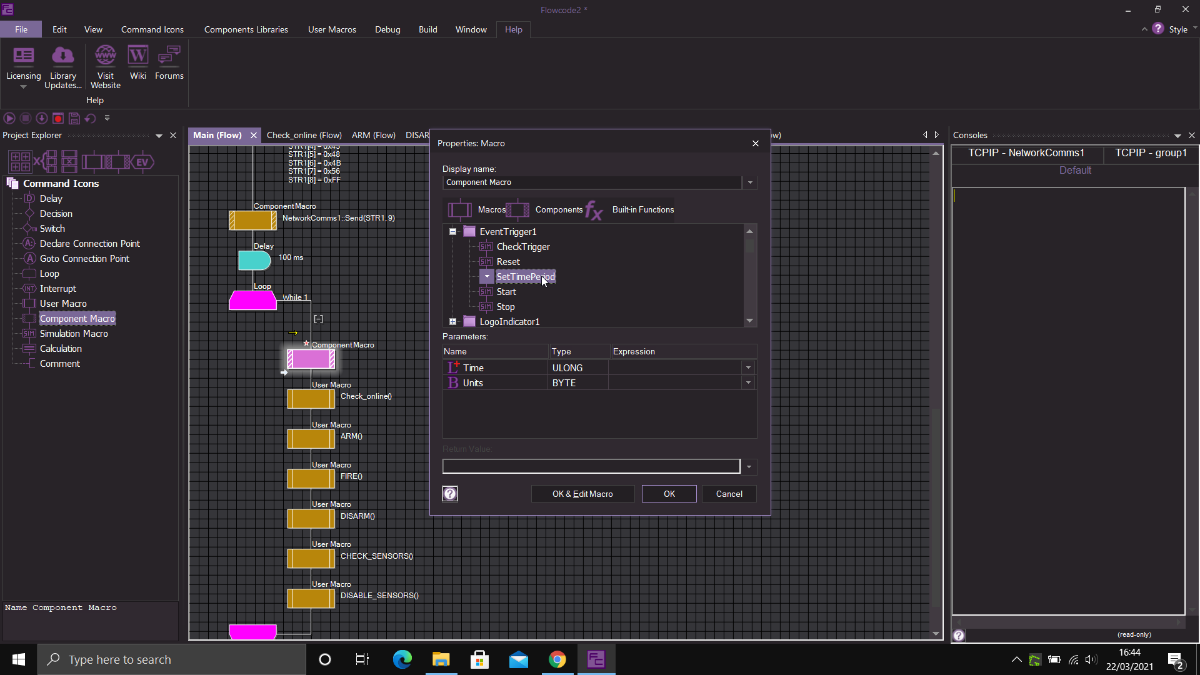

event timer.png (183.45 KiB) Viewed 4670 times

Thanks,
Wayne M

[medelec35]

Hi Wayne,

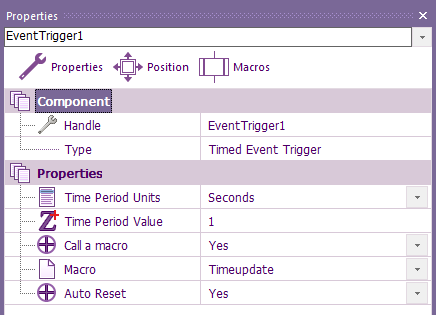

What I have posted is within the component properties.
right-click the component on the panel & select properties.
That is how you set up the time the event triggers in.
You don't require Period of the component, only start is required.

[Osta]

Hi Martin,
Controller PIC12F683. All settings went over but does not work!

[medelec35]

If you post your flowchart,
I will take a look at it for you.
