Post here to discuss any new features, components, chips, etc, that you would like to see in Flowcode.
-
stefan.erni
- Valued Contributor
- Posts: 1106
- http://meble-kuchenne.info.pl
- Joined: Wed Dec 02, 2020 10:53 am
- Has thanked: 209 times
- Been thanked: 229 times
Post
by stefan.erni »

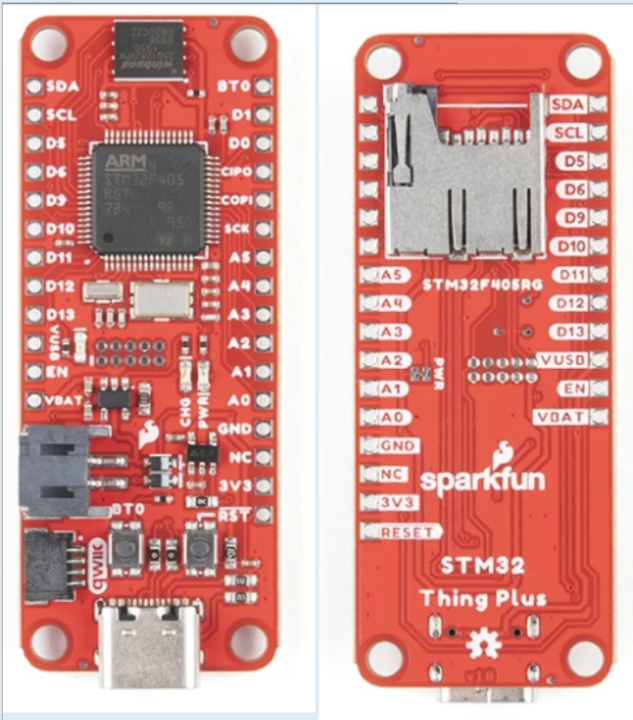

I would also like to use this board ,but I found the same problem with the sd-card.
- 2025-03-19_14-54-13.PNG (736.09 KiB) Viewed 3166 times
on board is a sd-card but I can not choose the pin for the sd-card
this is for:
SDI=D2
SDO=C8
CLK=C12
CS=C11 is ok
maybe you could use the 4Bit mode right away?

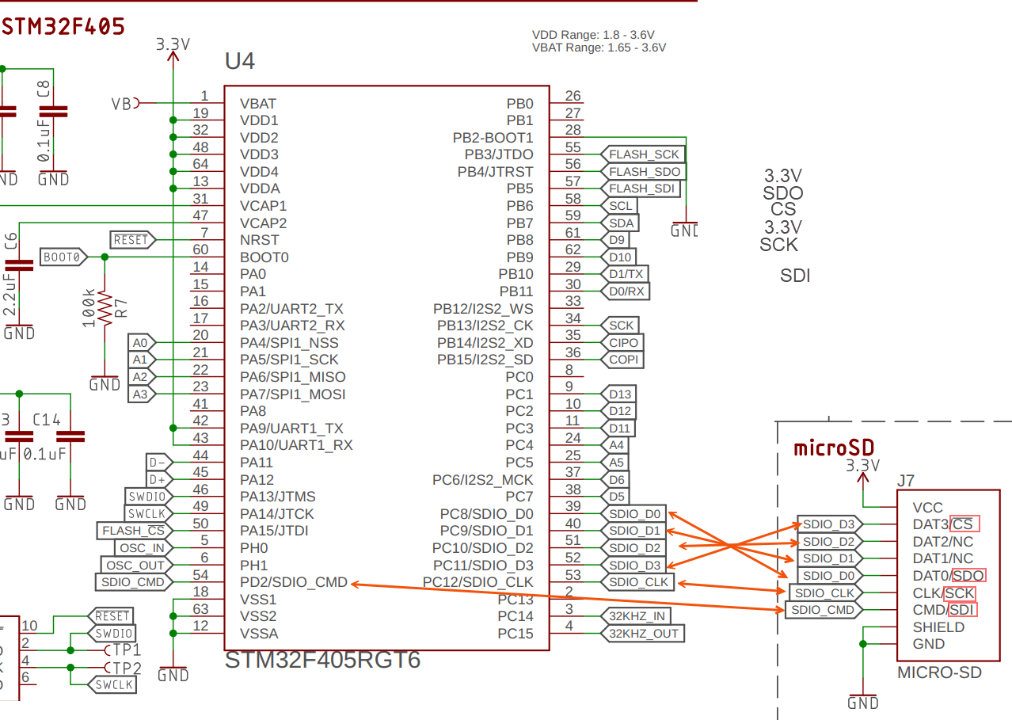

here the schematic:
- 2025-03-19_14-31-43.PNG (327.9 KiB) Viewed 3166 times
