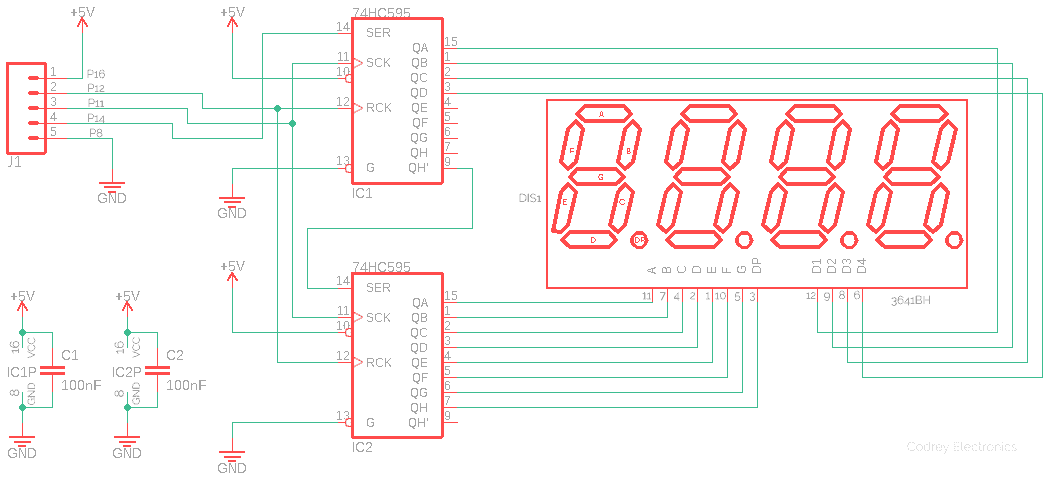

I am looking to replicate the design below on 8x 7-segment displays, and for this purpose, I will need 2x 74HC595 via the SPI interface.
Can someone please let me know, through an example, how I can multiplex those 8 digits on an Arduino Nano 328?
Is it possible to do it only via SPI, or will I need a common anode/cathode for each digit?
Thank you,
Andreas
FC11 Professional + ARD + ARM license + Matrix TSL E-blocks2 boards
Mikroe Click boards + Click Shield for ST Nucleo-32 + Clicker 4 for ST STM32F407VG
The 74HC595 devices are daisy-chained - so writing values will 'push' the data to the second chip... So you just need to write sufficient data for both devices before latching the data. I haven't used this - but the MAX7219 works in a very similar manner.
Martin
