Doubt with variables of the PID function
-
OderlandoAbril
- Posts: 10
- http://meble-kuchenne.info.pl
- Joined: Tue Apr 06, 2021 6:06 pm
- Has thanked: 2 times
- Been thanked: 1 time
Doubt with variables of the PID function
Hello. I'm trying to do some tests using the PID control and I have some doubts. I downloaded the PID example from https://www.matrixtsl.com/wikiv7/index. ... _%28DSP%29 to use it. I want to build a PID control that I can change the variables (P), (I) and (D) without having to go to Flowcode and rewrite the microcontroller with the new values. My question is: how can I use variables to do this? In the properties box I could not use variables, only numbers, as shown in the screenshot below. I would like help with this.
- Attachments
-

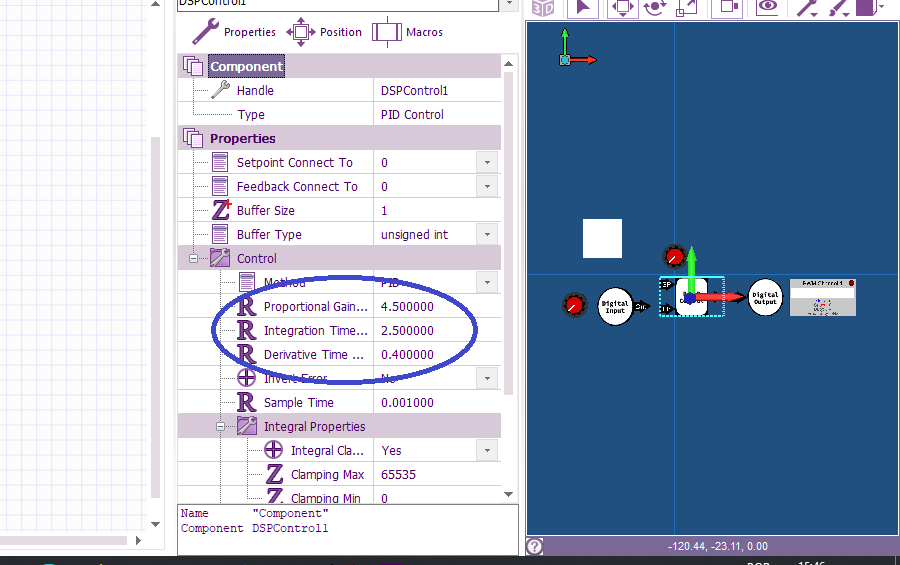

- Captura PID.PNG (66.75 KiB) Viewed 1238 times
-
chipfryer27
- Valued Contributor
- Posts: 1528
- Joined: Thu Dec 03, 2020 10:57 am
- Has thanked: 353 times
- Been thanked: 549 times
Re: Doubt with variables of the PID function
Hi
If I understand your request correctly, you wish to change the values of P,I and D during program execution? If so you can simply drag a component macro on to your chart, then select DSPPIDControl and from the submenu select ChangePID.
You can then use variables to set the parameters.
Regards
If I understand your request correctly, you wish to change the values of P,I and D during program execution? If so you can simply drag a component macro on to your chart, then select DSPPIDControl and from the submenu select ChangePID.
You can then use variables to set the parameters.
Regards
