Arduino + 16 x 2 LCD + LCM1602 I2C Adaptor

[medelec35]

fixed it now. i was trying both addresses that "as suggested" previously....then saved at wrong place. see attached please.

Yes that looks correct.
Can you see correct chars on your display now?

[oadramos]

No Sorry i cant.

if i open arduino IDE now and program it, it then shows me "Hello World"

[medelec35]

if i open arduino IDE now and program it, it then shows me "Hello World"

That is excellant news.
Thanks for letting us know.

[oadramos]

if i open arduino IDE now and program it, it then shows me "Hello World"

That is excellant news.
Thanks for letting us know.

I'm very sorry, i didnt mean it that way. My dad has been bragging about flow code since flowcode probably 1.0

I decided i have sometime and wanted to try it out... I'm sure its just something im doing silly.

[oadramos]

Does this look right?



Title:
Description:
Device: ARD.ATMEGA.ATMEGA328P
Generated by: Flowcode v9.2.0.33
Date: Friday, October 29, 2021 19:56:46
Users: 1
Registered to:
Licence key:
NOT FOR COMMERCIAL USE
https://www.flowcode.co.uk
Compilation is up-to-date
Linking is up-to-date
Using FCD settings for programmer
Launching the programmer...
C:\ProgramData\MatrixTSL\FlowcodeV9\FCD\AVR\batchfiles\avrc_arduinoA.bat "C:\Program Files (x86)\Flowcode\Common\Compilers\avrv5\" m328p arduino COM3 115200 "D:\Dropbox\Oliver Work 2020\FlowCode\Flowcode2.hex"



D:\Dropbox\Oliver Work 2020\FlowCode>REM REVISION: 1.0

D:\Dropbox\Oliver Work 2020\FlowCode>REM GUID: BC89C337-8FBB-43B7-A3A7-C7902C121931

D:\Dropbox\Oliver Work 2020\FlowCode>REM DATE: 29\03\2021

D:\Dropbox\Oliver Work 2020\FlowCode>REM DIR: FCD\AVR\batchfiles\avrc_arduinoA.bat

D:\Dropbox\Oliver Work 2020\FlowCode>"C:\Program Files (x86)\Flowcode\Common\Compilers\avrv5\bin\avrdude.exe" -pm328p -PCOM3 -b115200 -carduino -D -Uflash:w:"Flowcode2.hex"

avrdude.exe: AVR device initialized and ready to accept instructions

Reading |
################################################## | 100% 0.00s

avrdude.exe: Device signature = 0x1e950f
avrdude.exe: reading input file "Flowcode2.hex"
avrdude.exe: input file Flowcode2.hex auto detected as Intel Hex
avrdude.exe: writing flash (1150 bytes):

Writing | ################################################## | 100% 0.18s

avrdude.exe: 1150 bytes of flash written
avrdude.exe: verifying flash memory against Flowcode2.hex:
avrdude.exe: load data flash data from input file Flowcode2.hex:
avrdude.exe: input file Flowcode2.hex auto detected as Intel Hex
avrdude.exe: input file Flowcode2.hex contains 1150 bytes
avrdude.exe: reading on-chip flash data:

Reading |
################################################## | 100% 0.14s

avrdude.exe: verifying ...
avrdude.exe: 1150 bytes of flash verified

avrdude.exe done. Thank you.


Programming successful!


FINISHED

[oadramos]

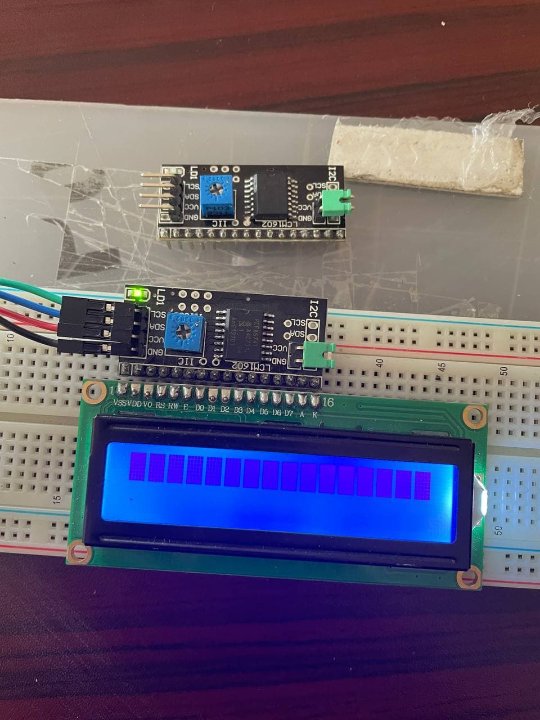

I have now swopped out the arduino boards and changed the wires. And still....



[medelec35]

If the wording is wrong after recompiling then the hardware has not been updated with the correct flwochart.
If the address is wrong then there will be a row of squares as the LCD has not ben correctly initilised.
As a sanity check, you can can confim the address is correct by using my I2C sniffer.

[oadramos]

If the wording is wrong after recompiling then the hardware has not been updated with the correct flwochart.
If the address is wrong then there will be a row of squares as the LCD has not ben correctly initilised.
As a sanity check, you can can confim the address is correct by using my I2C sniffer.

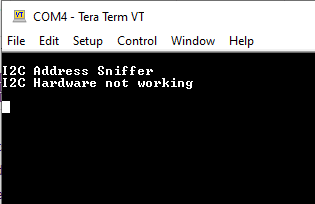

This looks bad???


[oadramos]

I even tried another LCM1602 Board and sniffed the same result.

another i2c board.jpg (75.04 KiB) Viewed 6239 times

[oadramos]

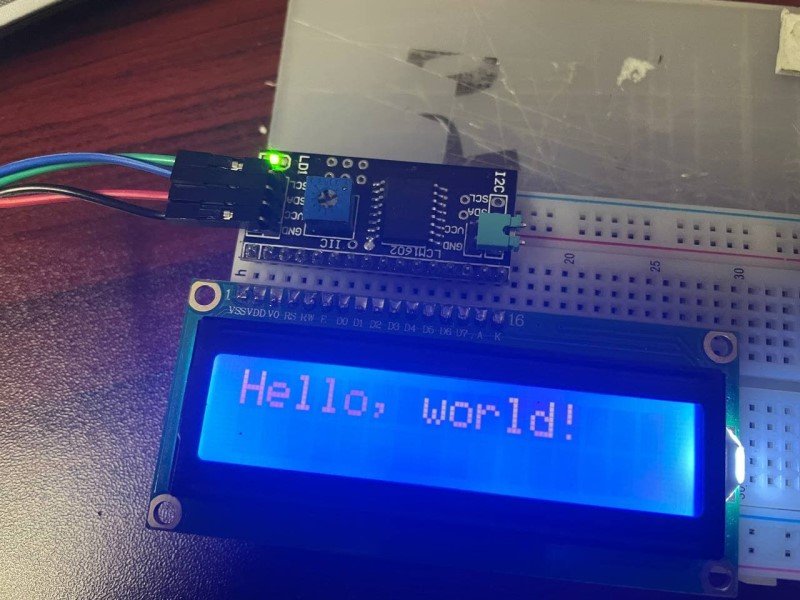

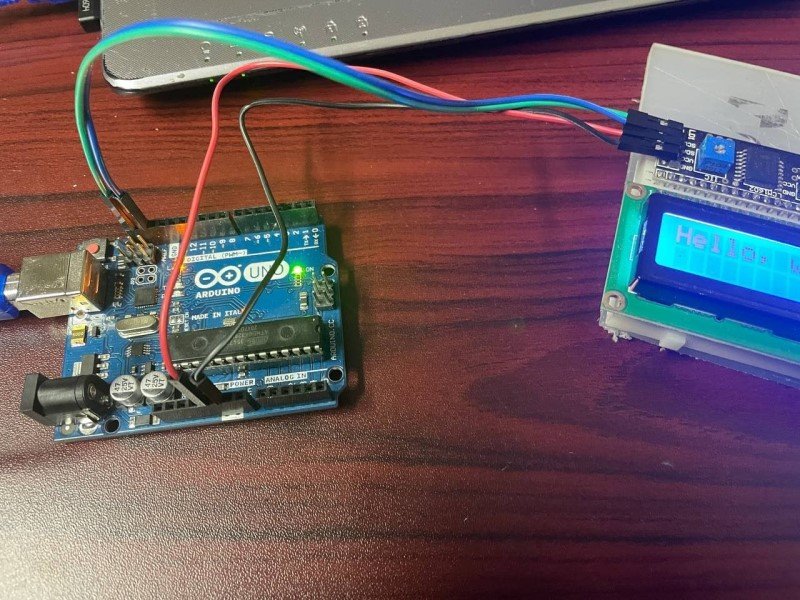

Just in case it helps...

My Arduino IDE code sketch that is working on current setup... Maybe it can help?

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Set the LCD address to 0x27 for a 16 chars and 2 line display
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup()
{
// initialize the LCD
lcd.begin();

// Turn on the blacklight and print a message.
lcd.backlight();
lcd.print("Hello, world!");
}

void loop()
{
// Do nothing here...
}
