STM32 new component SD-Card Mode 1Bit and 4Bit Mode

[stefan.erni]

Hi Ben

For the ESP32 exist a nice File SD-Mode component
but not yet for STM32 board although hardware is already available.

would it be possible to create such a component?

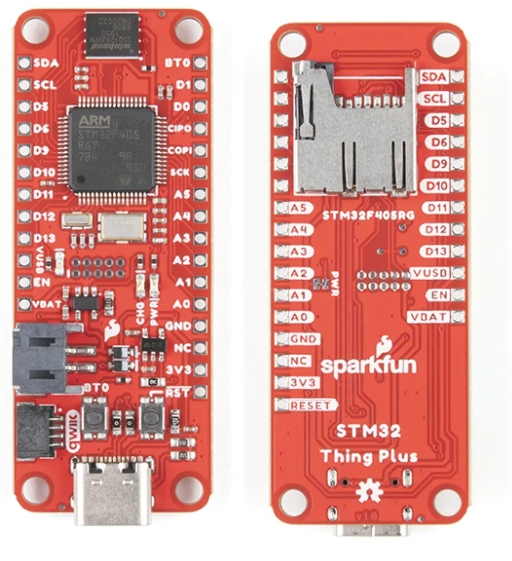

A board for test;

https://www.sparkfun.com/sparkfun-thing-plus-stm32.html


STM32F405RGT6 CPU exist in FC10

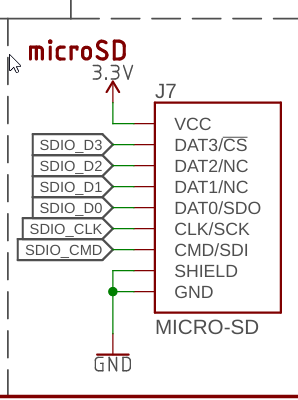

SD-Card:


SparkFun_STM32_Thing_Plus.pdf

(129.16 KiB) Downloaded 25 times

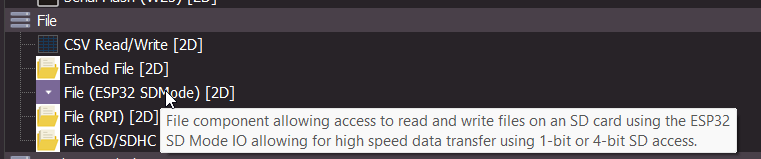

FC10 Component for ESP32:


[stefan.erni]

Hi Ben

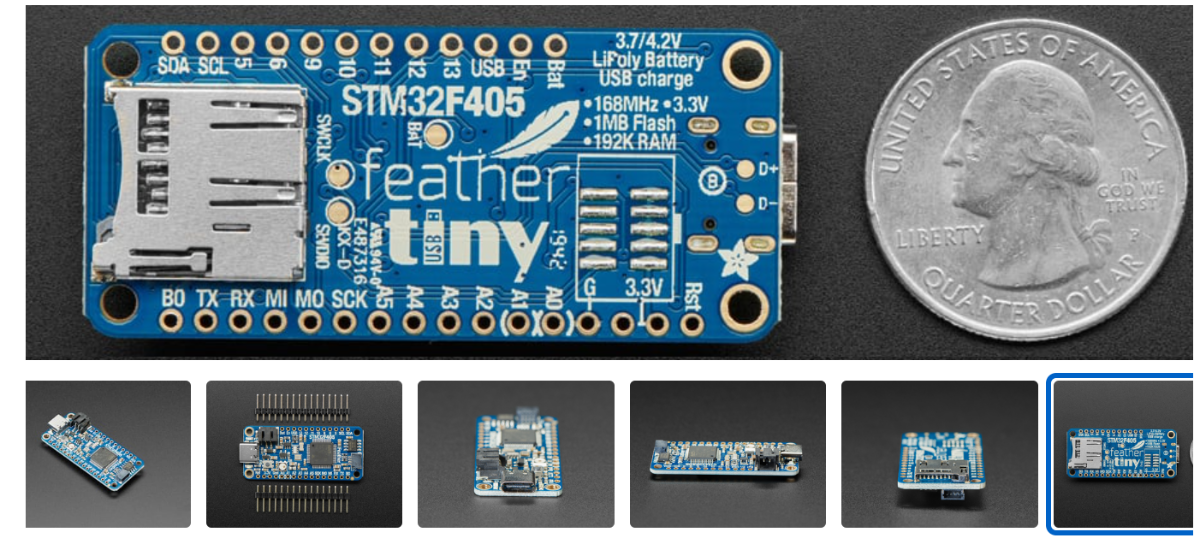

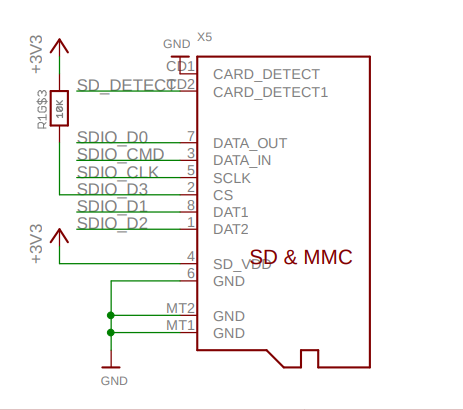

Here is another board with the QSPI SD-card


https://learn.adafruit.com/adafruit-stm ... er-express



[mkopitovic]

Hi Ben

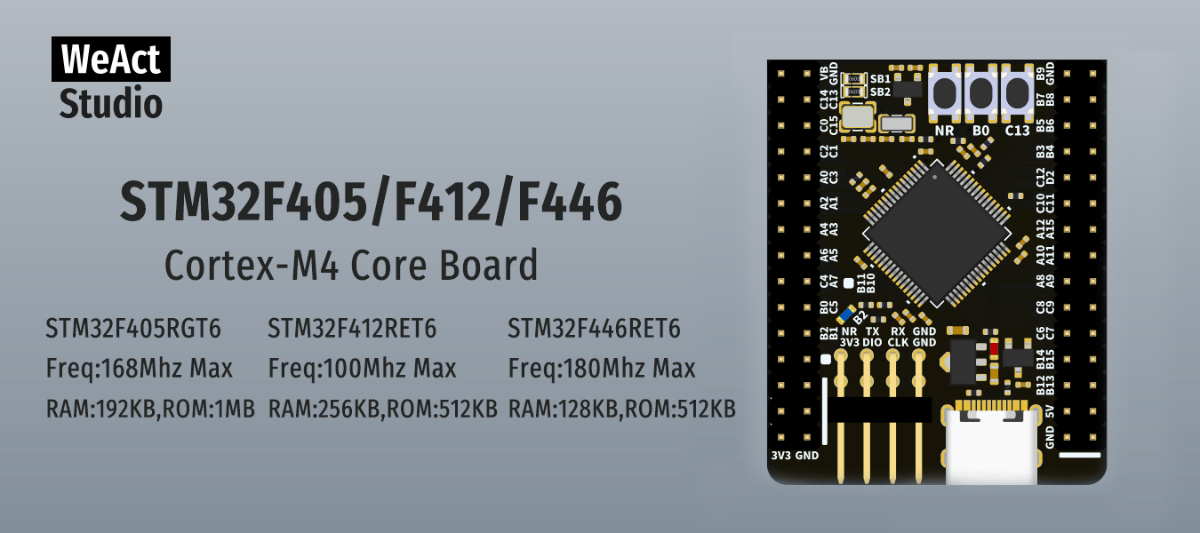

Here is another very cheap and interesting stm32f446 board (https://www.aliexpress.com/i/1005006051 ... cification) with the QSPI SD-card
More datasheets (https://github.com/WeActStudio/WeActStu ... _CoreBoard)
