Capacitors

<^< Light Dependent Resistors | Course Index | Capacitor Specifications >^>(:nl:)

'''Topics covered'''

* Capacitors ## Capacitor Specifications ## Preferred Values: Capacitors ## Capacitor Markings ## Examples: Capacitor Markings ## Capacitor Symbols ## Capacitor Construction ## Capacitors in Series ## Capacitors in Parallel ## Examples: Capacitors in Circuits ## Variable Capacitors

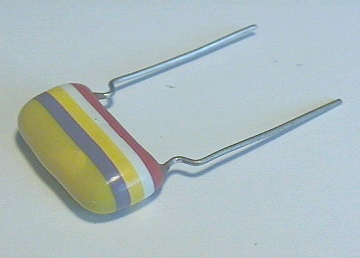

A capacitor is a device for storing electric charge. In effect, it is a reservoir into which charge can be deposited and then later extracted. Typical applications include reservoir and smoothing capacitors for use in power supplies, coupling a.c. signals between the stages of amplifiers, and decoupling supply rails (i.e., effectively grounding the supply rails as far as a.c. signals are concerned). (:nl:)(:table style="clear:both":)
