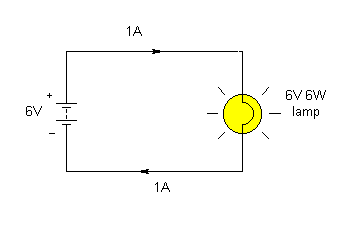

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Basic Lamp Circuit<^< Electrical Circuits | Course Index | Lamps in Series >^>(:nl:)  In the basic battery and lamp circuit, the battery provides an electromotive force (e.m.f.) and this causes a current to flow in the lamp. The battery has an e.m.f. of 6V and the lamp is rated at 6V, 6W. The current flowing in the lamp can be calculated from: I = P/V = 6W/6V = 1A Applying Ohm's Law to determine the working resistance of the lamp (i.e. the resistance when illuminated) gives: R = V/I = 6V/1A = 6Ω (:nl:)(:table style="clear:both":)
| |
