Lamps in Series

<^< Basic Lamp Circuit | Course Index | Lamps in Parallel >^>(:nl:)

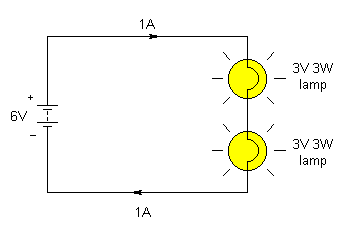

In the series connected circuit, two 3V 3W lamps are connected in series in order to consume a total power of 6W from the 6V supply. Once again, the current flowing in each lamp can be calculated from:

I = P/V = 3W/3V = 1A

Note that the same current (i.e. 1A) flows in each lamp.

Applying Ohm's Law to determine the working resistance of each lamp (i.e. the resistance when illuminated) gives:

R = V/I = 3V/1A = 3&#937;

The effective resistance of the circuit must be 6&#937; (i.e. 3&#937; + 3&#937;). (:nl:)(:table style="clear:both":)
