STM32 I2C master BUG

[Oscar_T]

Hello


With i2c master version 5 I can't compile my program

The compiler reports this message to me

"Errors when generating C source code:
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 1 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Mainboard_013.c : 4359 : error : Unknown or missing component: I2C_Master1::SendByteTransaction
Autoclose turned off

If I use version 4 everything is ok

Kind regards

Kind Regards

[medelec35]

Hi, Oscar.
It looks the component has had the name of function SendByteTransaction changed to GenericWriteRegister.
If you would like to post your flowchart, or pm if you want to keep it private, I can sort it out for you.
If you want to manually change it yourself, then I can help you with that.

[Oscar_T]

Hi Medelec

Thanks for the advice

I changed all SendByteTransaction with GenericWriteRegister. It compiles correctly but it doesn't work ...

Has something else changed or is it just a rename?

Kind regards

EDIT: Macros appear to be slightly different

[medelec35]

Hi, yes the macros do look a bit different:

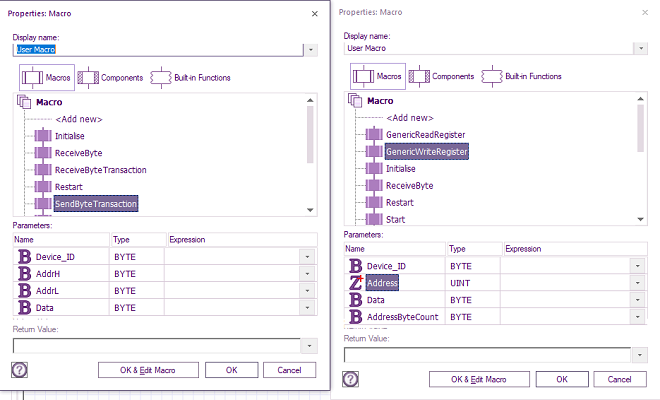

Component differences.png (87.47 KiB) Viewed 7701 times

The addressH and L has been changed to use one input which will cause an issue if not changed.
Hope this helps?

[Oscar_T]

Hello

How can I set the new address in the new macro? it consists of two parts (H and L)

For example 0x38, 0x40, 0x0E, 0x10

maybe 0x38, 78, 0x10, 2 ?

Kind regards

[medelec35]

As you already have the AddressHighByte & AddressLowByte
In the Address just enter the HighByte then lowByte straight after.
Eg using your example.
Since 0x38 is H and 0x40 is L.
For UInt address enter 0x3840

[BenR]

Hi Oscar,

Sorry for the inconvenience, hopefully the modification allows a bit more flexibility in future allowing for device support with 1 or 2 internal address bytes.

How about this.

0x38, 0x400E, 0x10, 0x02

The device address is as was, the Address high and low bytes have been combined together into a 16-bit value, the Data parameter is as was and the Address Byte count is how many bytes in the internal address: 1 or 2.

[Oscar_T]

Hi ben & medelec

Thanks for your explanations. Now everything works!

Kind regards
