IOC port Select pins

[pschoon]

Hi,

When using interrupt properties and selecting the IOC (interrupt on change Port) I always have to de-select all microcontroler pins.

When using a 100pin MCU these are a lot of pins. I only need one..
Can all these pins be de-selected instead of selected?

Thanks,

Patrick Schoon

[seokgi]

I have a question too.
What does black green red mean?
Can I choose a rising edge or a falling edge?

thank you.

[BenR]

Hello,

Yes a way to set/clear all pins in one go would be very handy. Thanks for the suggestion.

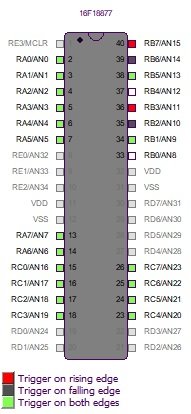

As for the pin colours, there should be a key that tells you what the colours mean.


Please note not all chips support the selectable IOC edge. We try and provide it where possible.
