Can you provide a component for the "Matrix Keypad Module V3.0" keyboard?

[niedian]

Can you provide a component for the "Matrix Keypad Module V3.0" keyboard?
I see the information link: (https://emakefun-arduino-library.github ... index.html)
Can you provide a component for the "Matrix Keypad Module V3.0" keyboard?

[niedian]

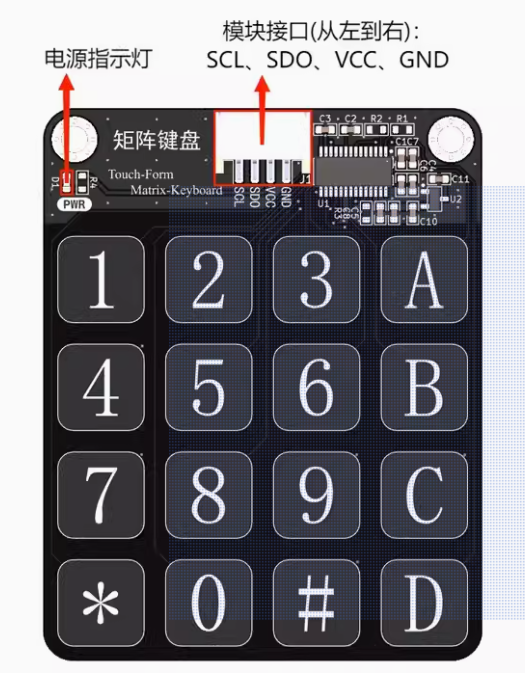

Developed using the BS8116A-3 touch chip.

[niedian]

Touch matrix keyboard module link: https://pan.baidu.com/s/1aIHu_GYLSGBms0jNiFKSGg
Extraction code: whi1

[BenR]

Hello,

Looks like this board and the chip is potentially pretty niche and so writing a component around it at the moment probably isn't that appealing. I say this mainly because I can't find them for sale anywhere.

However the I2C interface looks simple enough so I've put together an example for you that should work.

BS81xA.fcfx

(15.92 KiB) Downloaded 720 times

(view online)

If this board or chip becomes a bit more mainstream then yes certainly worth writing a component for it.

Please note I haven't looked at the library you suggested and so my demonstration threshold values etc may be incorrect.

Based on the datasheet I found here.
https://www.holtek.com/webapi/116711/BS81xA-xv160.pdf

[niedian]

Thank you very much, I'll give it a try.
