Exercise - Importing the LED Component

<sidebar>Sidebar: Flowcode Exercises:Ex3</sidebar>

• Create a new flowchart.

• The following assumes that you have built, and exported a LED component, as described in Exercise - Create an LED Component and Exercise - Exporting the LED Component.

• Open the 'Outputs' toolbox, where you stored the exported 'newLED' component. (If no destination was specified for the exported component, it would appear in the 'Misc' toolbox.)

• Locate the 'newLED' component, and use the down-arrow next to it to add it to the System Panel. It can now be used in the same way as any other electronic device.

What next?

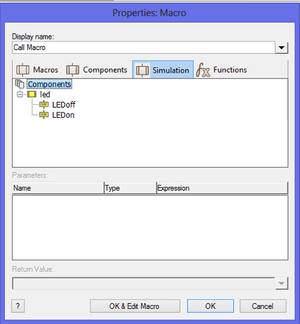

Create a flowchart which uses the imported component, and then test the imported component in simulation to ensure it works properly
