Assignment: Passive Circuits

<^< Written Questions: Passive Circuits | Course Index | Introduction: Active Circuits >^>(:nl:)

The section bellow contains an assignment for you to complete. This can be printed out for your own use.

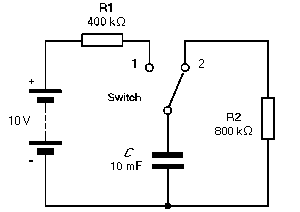

A simple timing circuit is shown in the figure. At time t = 0 the switch is moved from position 2 to position 1. The switch is then left in position 1 until t = 4 s and then moved to position 2. Assuming that the capacitor, C, is initially uncharged, sketch graphs that show:

# How the voltage developed across the capacitor varies with time over the range t = 0 to t = 10 s. # How the current flowing in the capacitor varies with time over the range t = 0 to t = 10 s. # Label your graphs clearly. (:nl:)(:table style="clear:both":)
