Exclusive OR Gates

<^< NOR Gates | Course Index | Exclusive-NOR Gates >^>(:nl:)

Exclusive-OR gates will produce a logic 1 output whenever either one of the inputs is at logic 1 and the other is at logic 0. Exclusive-OR gates produce a logic 0 output whenever both inputs have the same logical state (i.e., when both are at logic 0 or both are at logic 1). The Boolean expression for the output, Y, of an exclusive-OR gate with inputs, A and B, is:

Y = A . + B .

>>id=box1 class=toggle center<< >><< >>id=box2 class=toggle center<< >><< >>id=box3 class=toggle center<< >><< >>id=box4 class=toggle center<< >><<

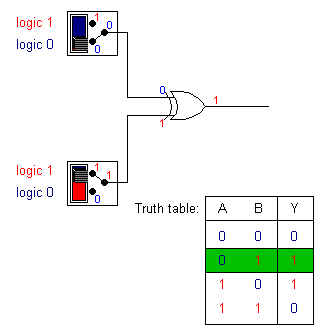

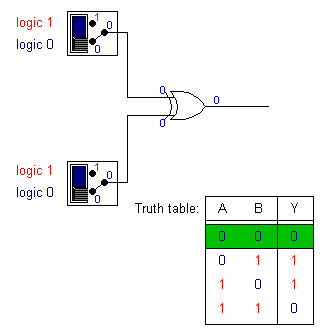

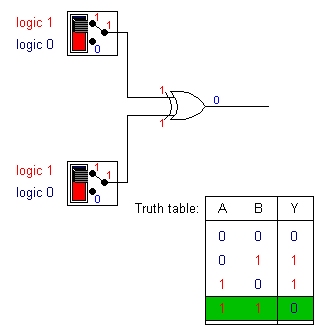

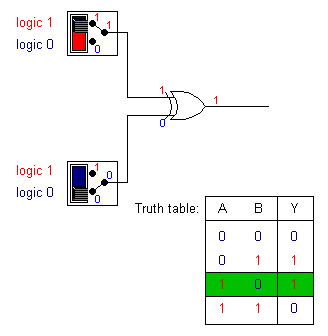

Logic 0, Logic 0 Logic 0, Logic 1 Logic 1, Logic 0 Logic 1, Logic 1
