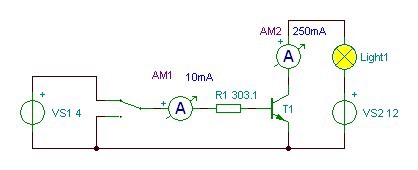

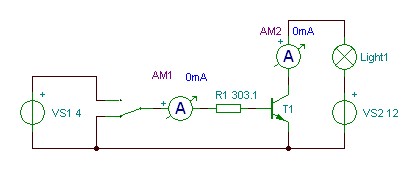

Electronic circuits often need to control large currents and voltages from signals that are much smaller. The circuit shows how a signal of only 4V at 10mA, can, in conjunction with a transistor acting as a current amplifier, be used as an electronic switch that controls a current of 250mA at 12V. In order for the circuit to operate correctly, the transistor must have a current gain (h'_FE_') of greater than 25. Note that, when the transistor is in the 'on' state, its collector-emitter voltage (V'_CE_') falls to a very low value (approx. 0.2V). In this condition we say that the transistor is saturated and no further increase in base current will reduce the value of V'_CE_'. Conversely, when the transistor is in the 'off' state, the value of V'_CE_' will be very close to that of the supply (i.e. 12V). In this condition we say that the transistor is cut-off . These two states are summarized in the table.
| |
