The Lab 6 exercises were written for a PIC16F1937 processor with LEDs and switches on Port A, and an LCD Display on Port B.
Matrix E-blocks users
The Lab 6 exercises require an EB004 LED board and an EB007 Switch board connected to Port A. Also an EB005 LCD Display board needs to be connected to Port B.

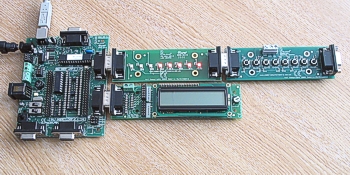

An example layout is shown opposite.
E-blocks setup for Lab 6
