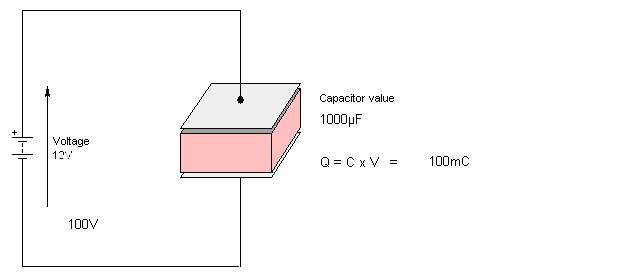

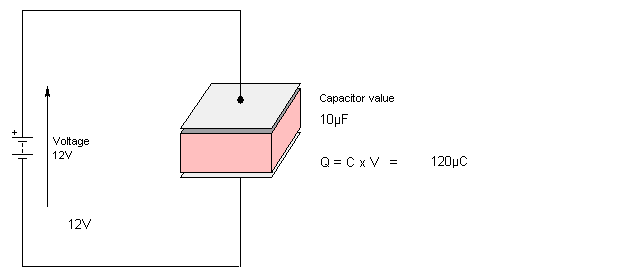

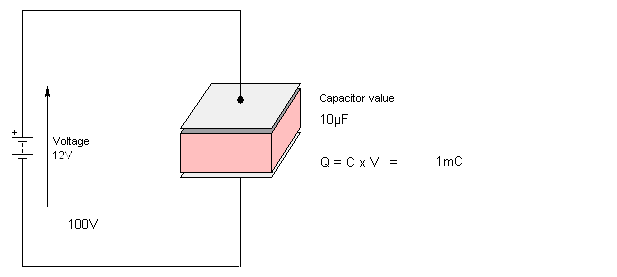

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Charge on a Capacitor<^< Capacitance | Course Index | Electric Field Strength >^>(:nl:) It should now be apparent that an electric field will appear within the capacitor whenever a potential difference is applied to the plates. At the same time, a positive charge will appear on one of the plates and an equal (but opposite) charge will appear on the other. The value of the charge present, Q, is: * Directly proportional to the capacitance of the capacitor (the larger the capacitance the larger the charge) * Directly proportional to the voltage between the capacitor plates (the larger the voltage the larger the charge). In fact, the charge on a capacitor is given by: Q = C V Where Q is the charge in Coulomb, C is the capacitance (in Farad) and V is the voltage (in Volts).
| |
