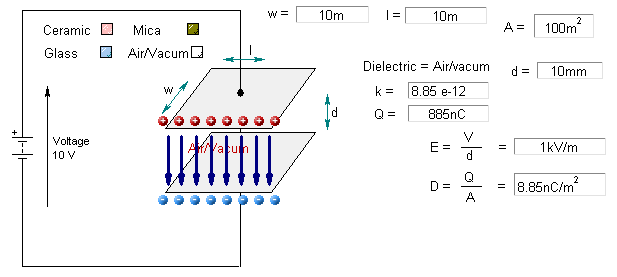

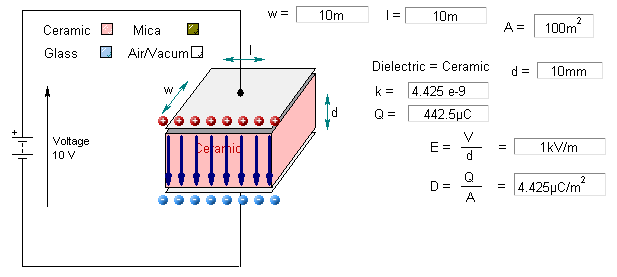

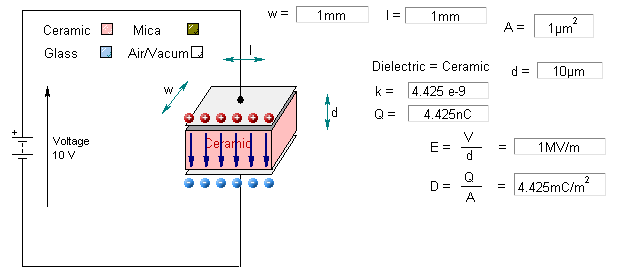

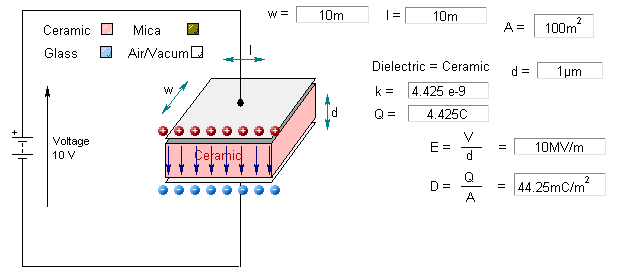

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Electric Field Strength<^< Charge on a Capacitor | Course Index | Examples: Electric Field Strength >^>(:nl:) The strength of an electric field (E) is proportional to the applied potential difference (V) and inversely proportional to the distance (d) between two charged plates. The electric field strength is thus given by: E = V / d where E is the electric field strength (in V/m), V is the applied potential difference (in V), and d is the distance separating the plates (in m). The electric flux density (D) is given by the ratio of charge (Q) to area (A). Thus: D = Q/A where D is the electric flux density (in Coulomb/m'^2^'), Q is the charge (in Coulomb), and A is the area (in m'^2^').
| |
