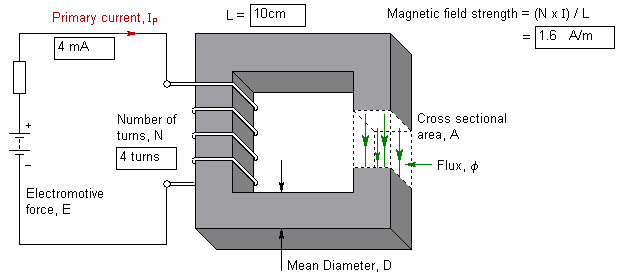

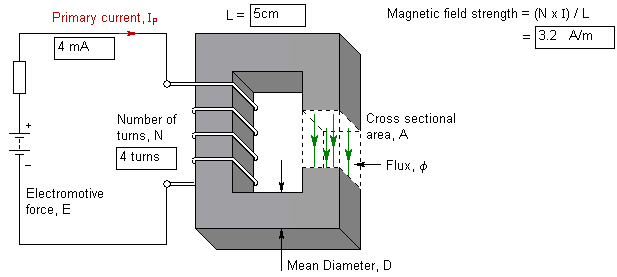

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Magnetic Field Strength<^< Electromagnets | Course Index | Examples: Magnetism >^>(:nl:) The strength of a magnetic field (H) is proportional to the applied current (I) multiplied by the number of turns (N), and inversely proportional to the mean length of the magnetic circuit (L). The magnetic field strength is thus given by: H = (N x I) / L where H is the magnetic field strength (in A/m), N is the number of turns in the coil (no units), I is the current (in A), and L is the mean length of the magnetic circuit (in m). Magnetic flux density (B) is given by the ratio of flux (Φ) to area A. Thus: B = Φ/A where B is the magnetic flux density (in Tesla), Φ is the flux (in Weber) and A is the area of the field (in m'^2^').
| |
