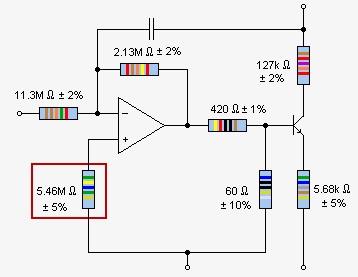

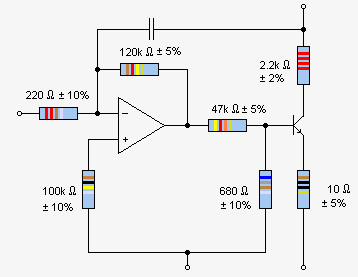

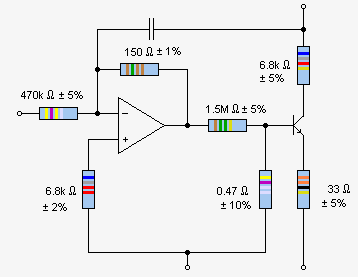

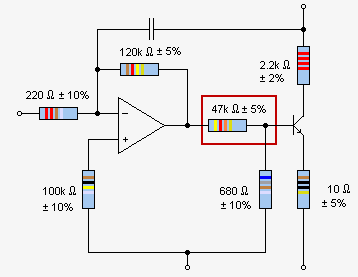

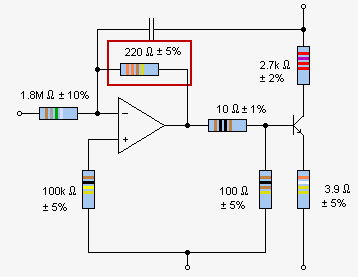

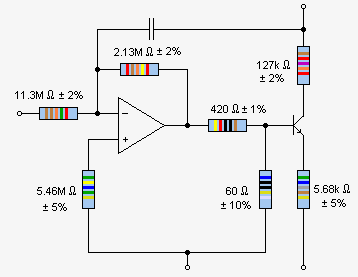

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Resistor Colour Code Test<^< Resistor Colour Code | Course Index | BS1852 Resistor Coding >^>(:nl:) The resistor symbols on the circuit diagrams on this screen have been substituted for their equivalent colour codes. One of the resistors used in each circuit does not equate to the value beside it. Try to figure out which resistor it is then click the answer button to see if your correct. >>id=box1a center frame round margin-right=25px margin-left=25px<<  >><< >>id=box1b center frame round margin-right=25px margin-left=25px text-align=center<<  This resistor is incorrect. The correct colours for 47kΩ ± 5% should be: Yellow Violet Orange Gold. The colours: Yellow Red Orange Gold = 42kΩ ± 5% >><< >>center<< >><< >>id=box2a center frame round margin-right=25px margin-left=25px<<  >><< >>id=box2b center frame round margin-right=25px margin-left=25px text-align=center<<  This resistor is incorrect. The correct colours for 470Ω ± 5% should be: Yellow Violet Brown Gold. The colours: Yellow Violet Orange Gold = 47kΩ ± 5% >><< >>center<< >><< >>id=box3a center frame round margin-right=25px margin-left=25px<<  >><< >>id=box3b center frame round margin-right=25px margin-left=25px text-align=center<<  This resistor is incorrect. The correct colours for 220Ω ± 5% should be: Red Red Brown Gold. The colours: Orange Orange Brown Gold = 330Ω ± 5% >><< >>center<< >><< >>id=box4a center frame round margin-right=25px margin-left=25px<<  >><< >>id=box4b center frame round margin-right=25px margin-left=25px text-align=center<<  This resistor is incorrect. The correct colours for 470kΩ ± 5% should be: Yellow Violet Yellow Gold. The colours: Yellow Violet Yellow Silver = 470kΩ ± 10% >><< >>center<< >><< >>id=box5a center frame round margin-right=25px margin-left=25px<<  >><< >>id=box5b center frame round margin-right=25px margin-left=25px text-align=center<<  This resistor is incorrect. The correct colours for 5.46MΩ ± 5% should be: Green Yellow Blue Yellow Gold. The colours: Green Yellow Blue Green Gold = 54.6MΩ ± 5% >><< >>center<< >><< (:nl:)(:table style="clear:both":)
| |
