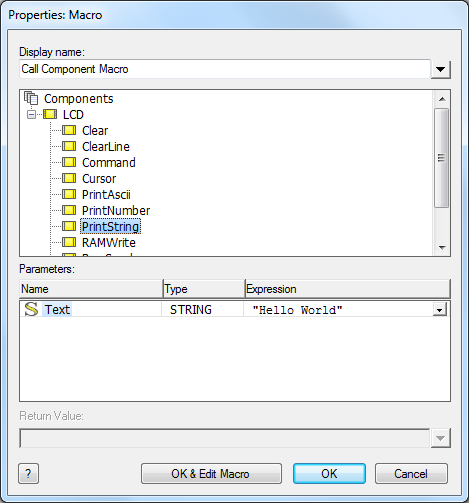

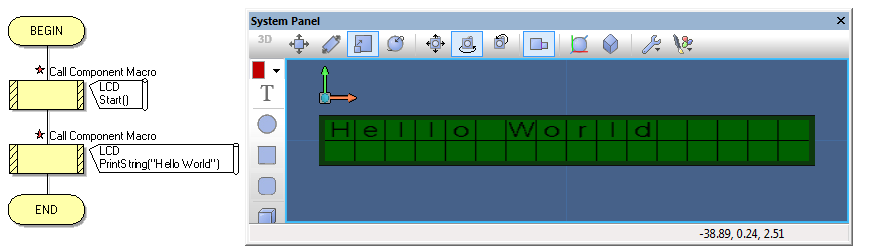

(:Summary:Contains the 'action' links (like Browse, Edit, History, etc.), placed at the top of the page, see site page actions:) (:comment This page can be somewhat complex to figure out the first time you see it. Its contents are documented at PmWiki.SitePageActions if you need help. :) * Print (:comment (:if group Site,SiteAdmin,Cookbook,Profiles,PmWiki*:) (:comment delete if and ifend to enable backlinks:) * %item rel=nofollow class=backlinks accesskey='$[ak_backlinks]'% [[{*$Name}?action=search&q=link={*$FullName} | $[Backlinks] ]] (:ifend:) :) * Login Writing Messages<^< Adding the LCD component | Course Index | Other LCD Functions >^>(:nl:) Displaying text on the LCD is as simple as typing it in. Add another 'Component Macro' to the flowchart and open the macro dialogue box. Look down the list of available macros in the 'LCD' section for a macro called 'PrintString' and select it. 'PrintString' takes a single parameter - 'Text' to be printed. Put the text into the parameter box surrounded by quotation marks, e.g. "Hello World"  Run the program and the text will be sent to the LCD display.  (:nl:)(:table style="clear:both":)
| |
